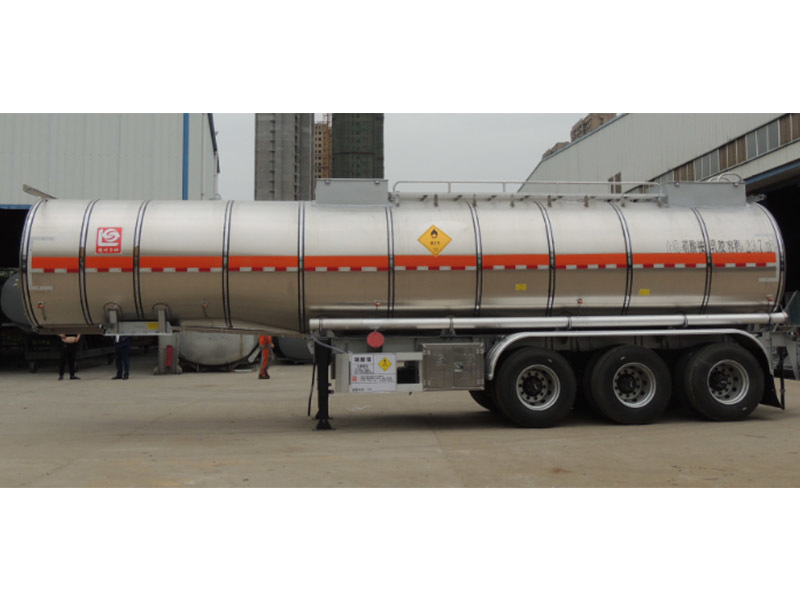

Tri-axle Insulation tank semi-trailer 30000-42000L
Classification:
Glass fiber or polyurethane foam covered by SUS304, Aluminum alloy orcarbon steel painted.
Contact：
Detail
Key Specifications
| Category | Parameter |
|---|---|
| Model | Tri-Axle Insulated Tank Semi-Trailer |
| Tank Capacity | 30,000-42,000L (adjustable) |
| Tank Material | Carbon Steel / Stainless Steel (AISI 304) |
| Insulation Type | Polyurethane Foam (80-120mm thickness) |
| Thermal Efficiency | ≤2°C temperature rise per 24h (ambient 30°C) |
| Design Pressure | Atmospheric (vented) / 0.3MPa (optional) |
| Trailer Configuration | 3 Axles (BPW/SAF/FUWA) |
| Max Gross Weight | 48,000kg (EU Standard) |
| Overall Dimensions | 12,000-13,600×2,550×3,900mm |
| Unladen Weight | 8,200-10,500kg |
| Loading/Unloading | Top/Bottom loading (pump or gravity) |
| Certifications | ADR, EN 13094, ISO 1496, GB1589 |
Core Features
✔ Superior Insulation – Polyurethane foam maintains stable temperatures for sensitive liquids
✔ Multi-Purpose Design – Suitable for food-grade, chemical & bitumen transport
✔ Safety Compliance – Meets ADR & EN 13094 standards with vapor recovery option
✔ Durable Construction – 5-8mm steel walls with anti-corrosion coating
✔ Smart Options – Temperature monitoring + GPS tracking (4G/5G)
Optional Equipment
Heating System – For bitumen/asphalt (oil/electrical)
Aluminum Wheels – Reduce tare weight by 400-600kg
Vapor Recovery – For volatile chemicals
Food-Grade Lining – Epoxy/polyethylene coating
Applications
Food Transport – Edible oils, syrups, liquid chocolate
Industrial Chemicals – Latex, resins, solvents
Construction – Bitumen, asphalt, adhesives
Energy – Liquid wax, thermal oils
Why Choose Our Tanker?
5% Better Thermal Retention vs. industry average
Modular Compartments – 2-4 segregated chambers
10-Year Tank Warranty – Corrosion guarantee
Global Certification – Ready for EU/ASEAN/Middle East markets
