Refrigerator Truck/ Freezer Truck/Refrigerated Truck for Transport
Classification:
Customization: Available After-sales Service: 12month Warranty: 12month
Contact：
Detail
Basic Info.
Packaging & Delivery
Product Description
Refrigerator Truck/ Freezer Truck/Refrigerated Truck for Transport
Refrigerator truck (also called refrigerator wagon , refrigerated truck , refrigerated box car , freezer vehicle , freezer wagon , temperature controlled truck , refrigerator car , preservation vehicle ) is used to carry perishable stuff at specific temperatures .
The cooling device could be of famous brand such as carrier , Thermoking , There are two types of power driving ways , one is powered by vehicle engine through PTO , The other is driven by a separately carried power unit . According to the transport stuff category ( Fresh or Frozen ), There are two main lowest temperature unit (-5º or -16º) for your option .
We use high quality van body for temperature reservation , The box surface material could be fiberglass , Aluminum or stainless steel , The padding material is polyurethane foam that has super temperature preservation ability with varieties of thickness options .
Chassis brand
Sinotruk Howo , Beiben trucks , Shacman trucks , FAW trucks ,Hongyan trucks,FOTON trucks , Dongfeng trucks , JAC trucks
Technical datails
| Product model and name | SLS5040XLC5 Refrigerator truck | ||||||||||
| Gross weight(Kg) | 4495 | Drive type | 4x2 | ||||||||
| Payload(Kg) | 2455 | Overall dimension(mm) | 5995X2090X2950 | ||||||||
| Curb weight(Kg) | 2500 | Cab seats | 3 | ||||||||
| Approach/departure angle(°) | 20/14 | Front/rear hang(mm) | 1210/2090 | ||||||||
| Axle No. | 2 | Wheelbase(mm) | 3300 | ||||||||
| Axle load(Kg) | 1800/2695 | Max speed(Km/h) | 90 | ||||||||
| Chassis specification | |||||||||||
| Chassis model | EQ1060 | Manufacturer | Dongfeng Auto Co.,Ltd | ||||||||
| Brand name | Dongfeng | Emission standard | Euro 3 | ||||||||
| Tyre specification | 7.00-16 | Tyre No. | 6 | ||||||||
| Fuel type | Diesel | Transmission | 5 forward gear,1 reverse gear | ||||||||
| Cab | Single row, luxurious interiors and seats with power steering. Air condition is optional. | ||||||||||
| Engine model | Engine manufacturer | Power(hp) | |||||||||
| CY4102-E3C | Dongfeng Chaoyang Diesel Co.,Ltd | 95hp | |||||||||
| Performance | |||||||||||
| Van body size(mm) | 4000×1880×1850 | Load capacity(m3) | 14 | ||||||||
| Lowest refrigeration temperature(ºC) | -18 centigrade | ||||||||||
| Feature and Application | |||||||||||

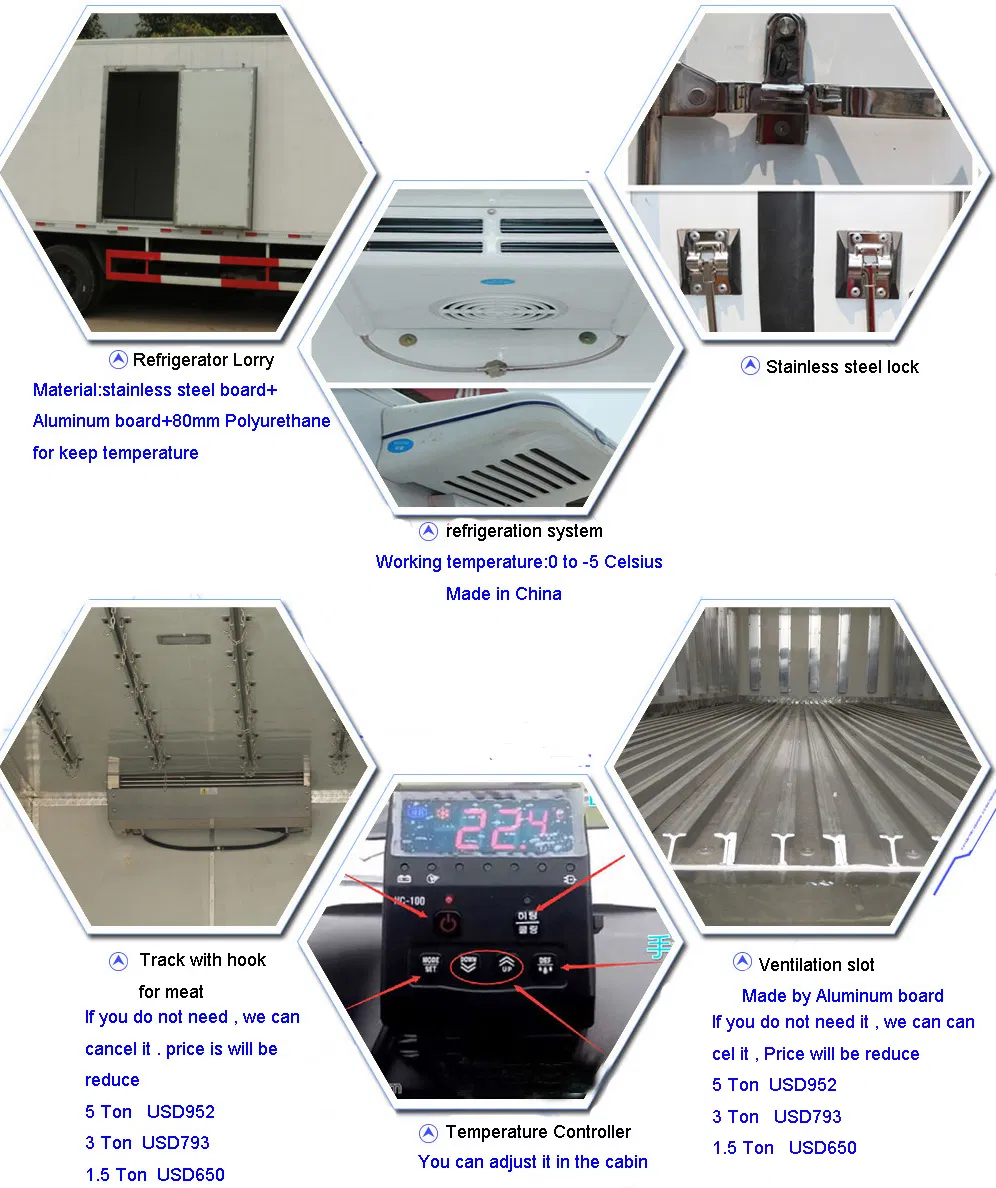

| The refrigerator truck is the closed van truck that is used to transport the frozen or fresh goods. This truck is made up of vehicle chassis, Polyurethane insulation van, refrigeration unit and temperature recorder. It is commonly used to transport the frozen food, dairy products, vegetable and fruit and vaccine medicine etc. For the special requirements of trucks,such as the meat transportation, the meat hook, aluminum alloy guide rail and ventilation slots etc. parts can be chosen and installed. | |||||||||||

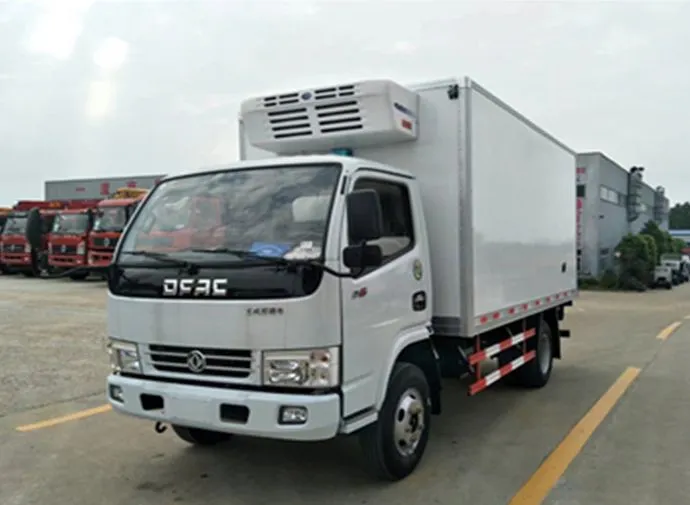

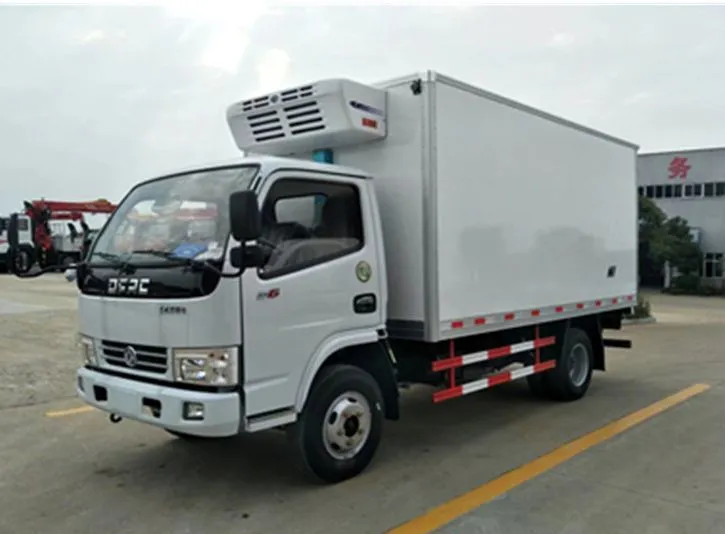

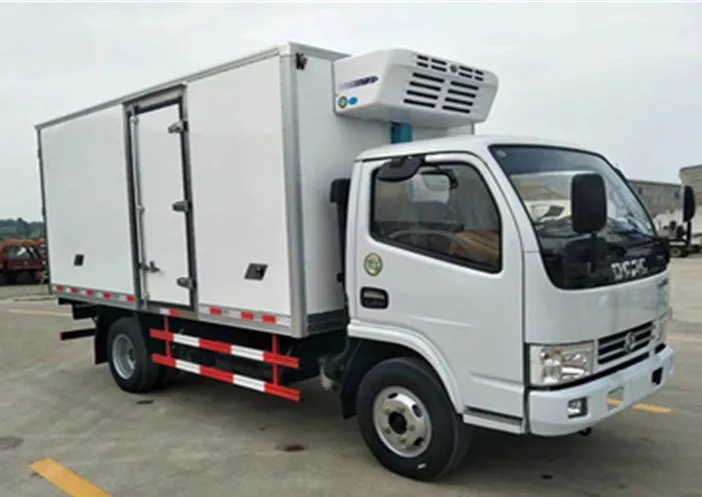

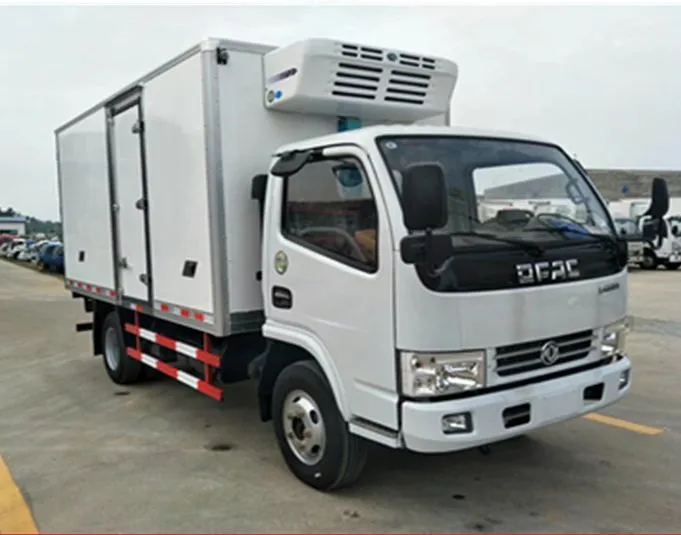

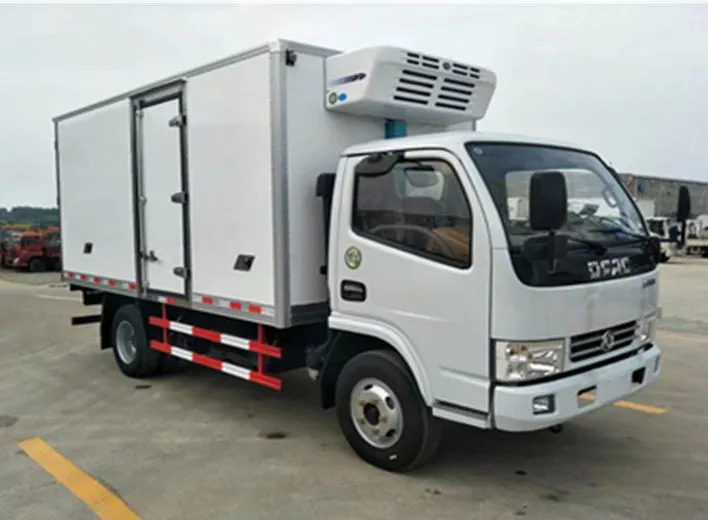

Truck picture:
Refrigerator Truck lorry
Main products:
1. Oil Tank Truck
2. Refueling Truck
3. Water Tank Truck/ Water Sprinkler Truck
4. Sewage Suction Truck
5. Sanitation Truck
6. Fuel Tank Semi Trailer
7. Oilfield Truck
8. Chemical Liquid Tank Truck
9. Cement Powder Tank truck/ Bulk cement truck
10. Flatbed Trailer
11. Container Semi Trailer
12. Self-loading Garbage Truck, Garbage Compactor Truck, Sealed Garbage Truck
MOQ: 1 unit
Payment Terms: T/T, L/C
Packing: nude cargo
Delivery Time: within 30 days after receipt of the 30% deposit.
Excellent Quality & Globalized Lishen
Green Development & Harmony Win-win
Welcome to visit our factory.
