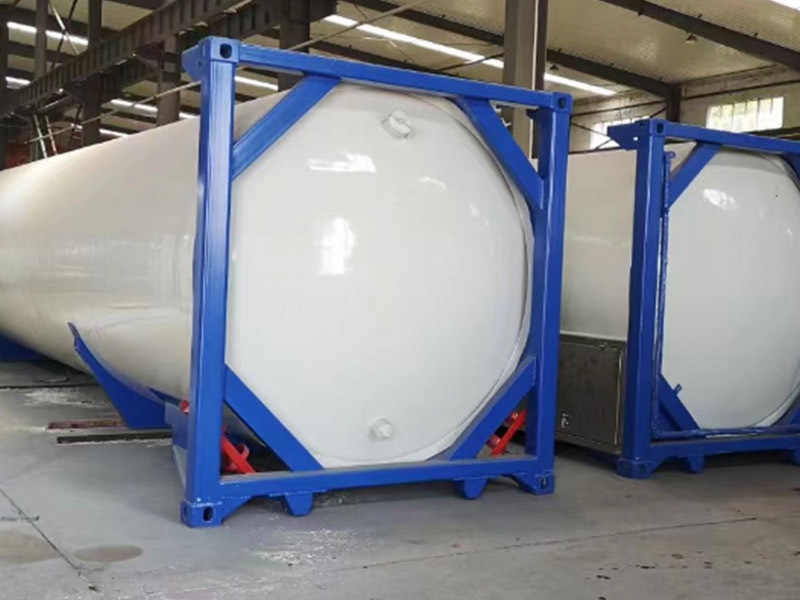

20/40FT LPG Tank Container
Classification:
20/40FT LPG Tank Container
Contact：
Detail
Key Specifications
| Category | 20FT Container | 40FT Container |
|---|---|---|
| Model Code | LPG-TC20 | LPG-TC40 |
| Capacity | 10,000-12,000 liters (26-32M³) | 20,000-24,000 liters (53-63M³) |
| Design Pressure | 2.16 MPa (313 PSI) | 2.16 MPa (313 PSI) |
| Test Pressure | 3.24 MPa (470 PSI) | 3.24 MPa (470 PSI) |
| Shell Material | P460NL1/P355GH (EN 10028) | P460NL1/P355GH (EN 10028) |
| Insulation | 100mm polyurethane foam | 100mm polyurethane foam |
| Valve System | Double safety valves + ESD | Double safety valves + ESD |
| Max Fill Ratio | 85% | 85% |
| Tare Weight | 3,800-4,200 kg | 5,200-5,800 kg |
| Payload Capacity | 16,000-18,000 kg | 30,000-34,000 kg |
| Operating Temp | -40°C to +50°C | -40°C to +50°C |
| Certifications | ISO 1496-3, ASME, DOT-SP, TPED | ISO 1496-3, ASME, DOT-SP, TPED |
Standard Features
✔ Safety Systems:
Overfill protection device
Pressure relief valves (dual)
Fire-resistant thermal coating
Grounding and bonding points
✔ Smart Monitoring:
Integrated telemetry system (optional)
Remote pressure/temperature monitoring
GPS tracking capability
Technical Advantages
Modular Design: Stackable for efficient storage/transport
Corrosion Protection: Internal shot blasting + epoxy coating
Universal Compatibility: Fits all standard container handling equipment
Low Maintenance: Stainless steel valves and fittings
Optional Equipment
Vapor recovery system
Bottom loading configuration
Explosion-proof lighting
Customized painting (RAL colors)
Heating system for cold climates
Compliance & Certifications
ISO 1496-3 (Container Safety Standards)
ASME Section VIII Division 1
DOT-SP Special Permit (USA)
TPED (Transportable Pressure Equipment Directive)
ADR/RID (European Road/Rail Transport)
Why Choose Our LPG Tank Containers?
Global Logistics Ready: Fully compliant with international multimodal transport
Superior Safety: Exceeds UN pressure vessel requirements
Cost Efficient: 10% lighter than competitors with same capacity
Quick Delivery: 30-45 days production lead time
