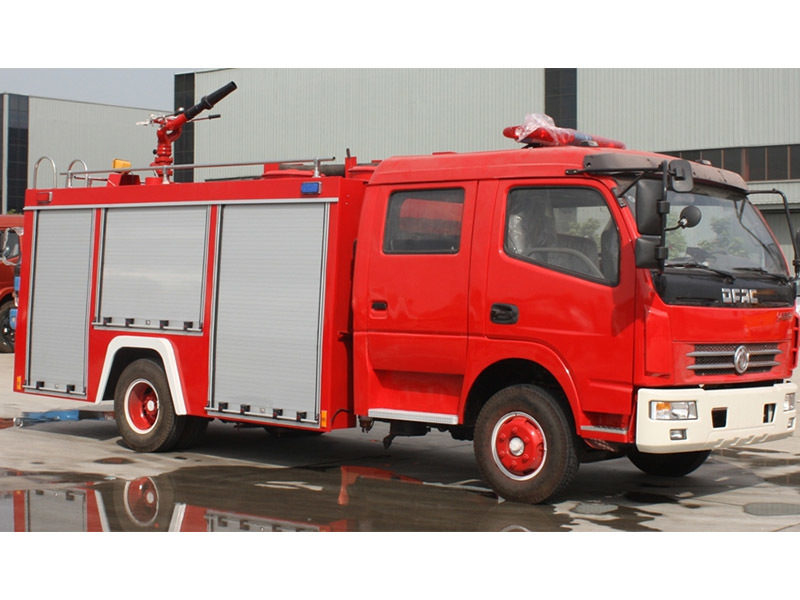

DFAC Fire truck 4500L/3000+1500L
Classification:
Engine power 140/170HP Euro III, V, VI
Contact：
Detail
Key Specifications
| Category | Parameter |
|---|---|
| Model | DFAC EQ1070TZ6D Fire Truck (4×2) |
| Water Tank Capacity | 4,500L (Standard) or 3,000L Water + 1,500L Foam |
| Chassis Engine | Dongfeng CY4BK461 (Euro V) |
| Power Output | 160 HP (118 kW) @ 2,800 rpm |
| Transmission | 5-speed manual |
| Max Speed | 90 km/h (governed) |
| Pump System | FPN 4/60 Fire Pump (2,000L/min @ 1.0MPa) |
| Cannon Flow Rate | 1,800L/min (main monitor) + 150L/min (auxiliary) |
| Foam System | 1,500L foam tank (3%-6% mixing ratio) |
| Overall Dimensions | 6,800×2,100×3,000 mm |
| Approach/Depart Angles | 22°/12° |
| Cabin | 2+2 crew cab (AC + basic SCBA storage) |
| Certifications | CCC, GB7956, EN 1846 (optional) |
Firefighting Systems
✔ Compact & Agile – Ideal for narrow urban streets and industrial zones
✔ Dual-Agent Operation – Simultaneous water/foam discharge capability
✔ Reliable Pump – 2,000L/min @ 10 bar with manual pressure control
✔ Monitor Reach – 45m horizontal / 25m vertical (main cannon)
✔ Foam Proportioning – Manual control (3%-6% adjustable)
Special Features
Basic Control Panel – Analog pressure gauge + pump controls
Safety Lighting – 4× 500W LED work lights (360° coverage)
Storage – 3-4 compartments for hoses and basic tools
Lightweight Design – Optimized for rapid response
Optional Equipment
Upgraded Pump – 2,400L/min capacity
Additional Foam Tank – +500L capacity
Rescue Tool Storage – Hydraulic cutter/spreader mounts
Winterization Kit – -20°C operation
Deployment Scenarios
Small Municipalities – Budget-friendly fire response
Industrial Parks – Factory/warehouse protection
Rural Firefighting – Villages and agricultural areas
Airport Ground Support – Secondary crash tender
Why Choose DFAC?
✅ Cost-Effective – 30% lower price than European equivalents
✅ Easy Maintenance – Simplified mechanical systems
✅ Local Support – 1,000+ service centers in developing markets
