HOWO fuel truck 20000L-24000L
Classification:
Engine power 300/400hp Euro II, V , VI
Contact：
Detail
Suizhou leshen special vehicle co., ltd is a professional vehicle manufacturer in China for many more than 20 years, Registered trade mark is 'Awakening Lion" and vehicle code is "SLS"
The major products of the company are special vehicles involving six catalogs, namely petrochemical transport vehicles, oilfield vehicles, bulk powder vehicle, Sanitation vehicles, Engineering vehicles and Container carrying vehicles
The company has right of import and export, we have twenty offices and after sale service network in China, part of our products are sold to south Asia, Middle Asia, Middle East, Africa and South America. our products quality and service won praise from Customer both at home and abroad.
1,Oil tank truck, including Truck chassis, Tanker,Manhole, Bottom valve, pipeline system, API Loading valve and so on
2, Refueling system including refueling system ( oil pump, Nc tanker, flow meter, refueling reel, refueling gun)
3, tank material can be : Carbon steel, optional Aluminum alloy 5081
4, we can optional different brand of Truck chassis, HOWO, SHACMAN, DONGFENG, FAW,FOTON and so on
5, Divide different size compartment, or same compartment, transport different oil (petrol, diesel, Alcohol)
Technical Specifications of SINOTRUK HOWO Fuel truck 25M3

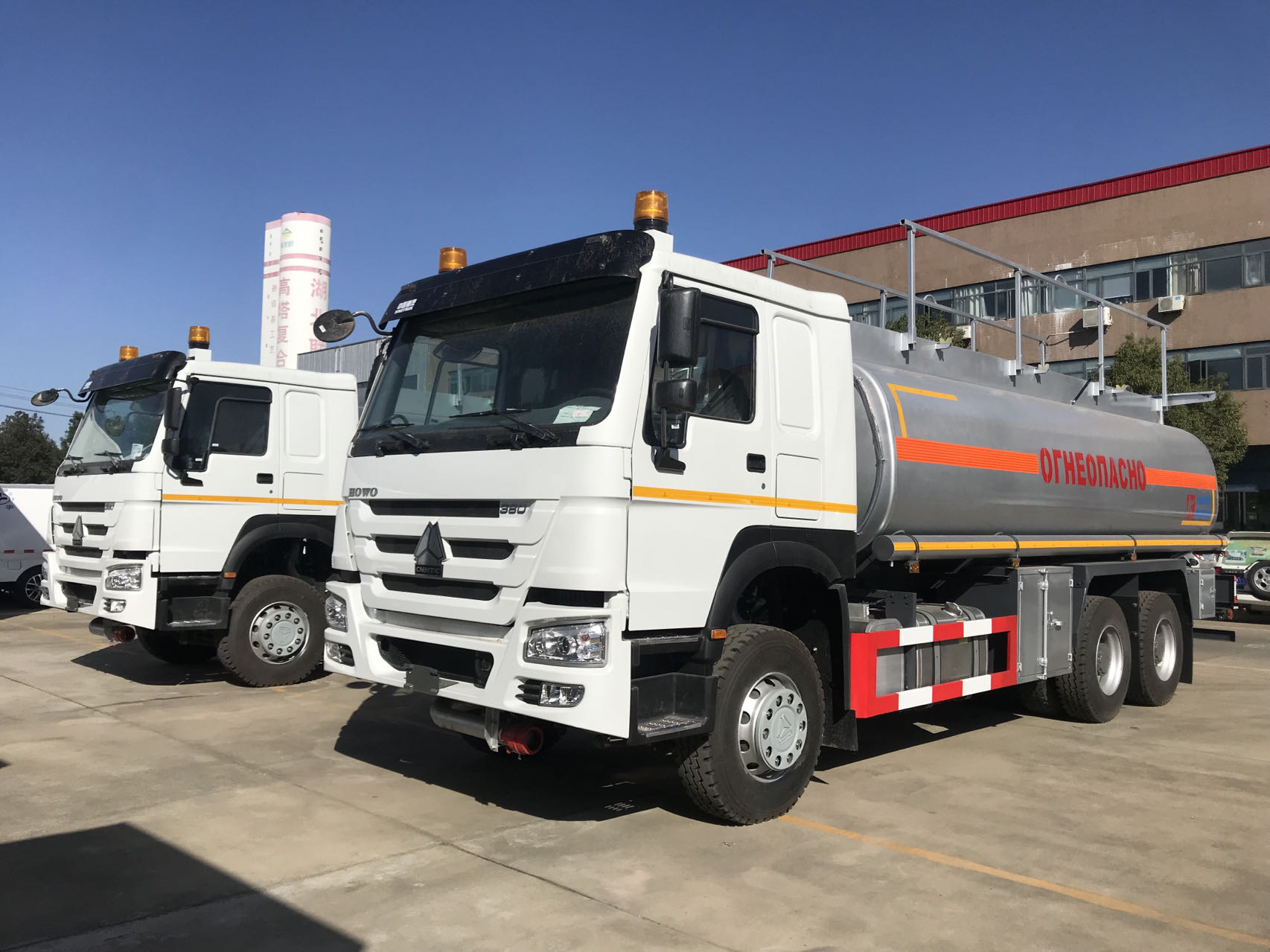

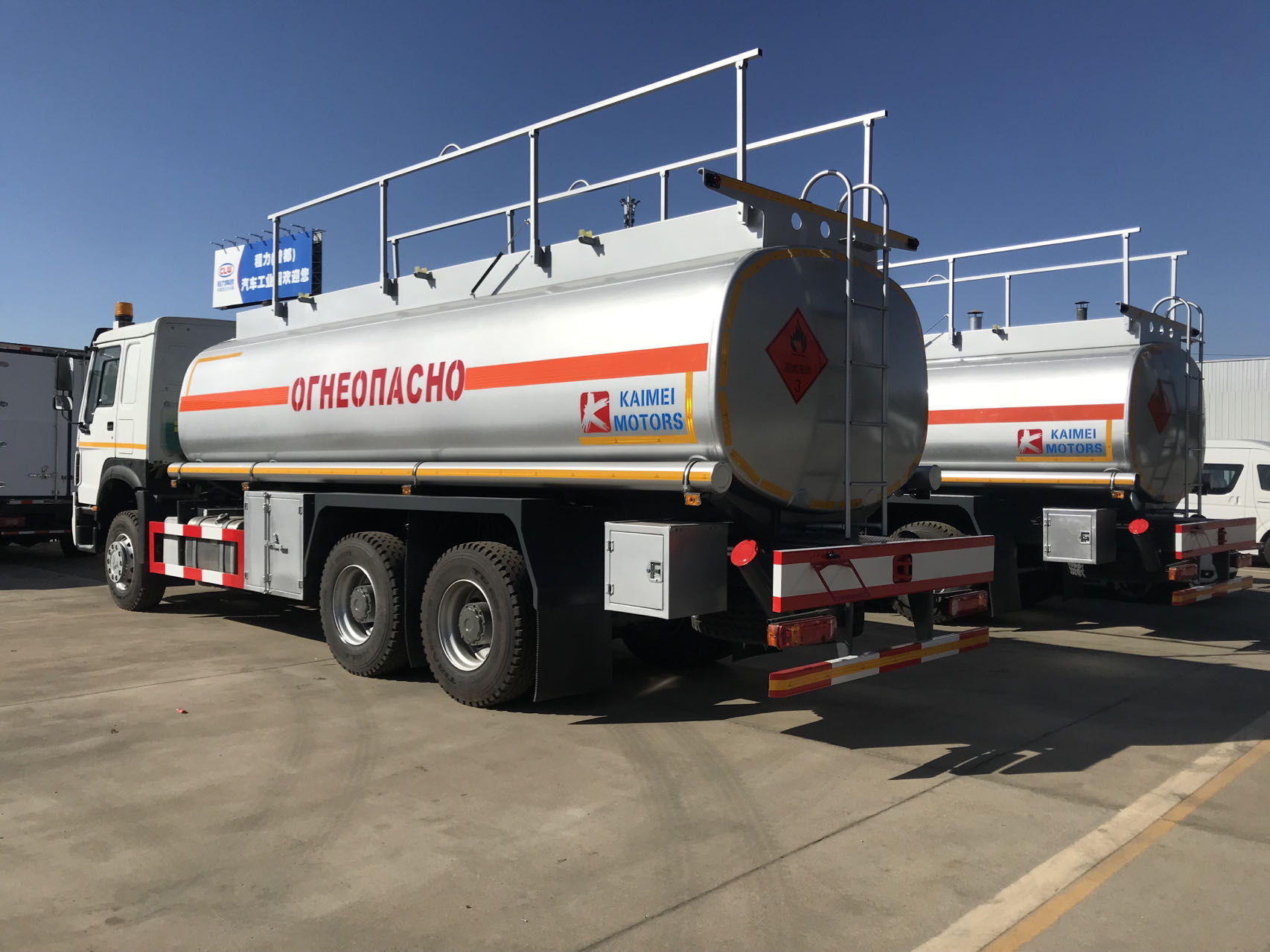

The photos is just for reference
Item | Unit | Description |
Vehicle | Vehicle model | GLS5252GYYZ3 fuel tanker |
Vehicle brand | LS | |
Chassis model | ZZ1257M4641W | |
Overall dimensions（mm） | 10100x2500x3320 | |
Up-parts | Tank dimensions（mm） | 7200x2450x1820 |
Tank description | Squircle Tank shell material Carbon steel 5mm, tank end 6mm, Tank loading capacity 25,000L Tank Testing Pressure 36Kpa, and do water test. | |
Standard equipment | Single compartment, 2pc Euro standard Manhole dim 500mm,2pc breath valve,1pc pneumatic bottom valve, 3 inch Ball valve 2pcs, oil gas recovery system,level gauge, Rear ladder, anti-slip walkway, handrail, anti-static belt, 2pc fire extinguisher 8kg, steel tool box,Reflective stickers and so on | |
Add equipment | Oil pump driven by truck’s engine of PTO, can pump out and pump inlet, | |
Optional equipment | Fuel dispenser can count flow liter and counter fee. 15m Hose with oil Nozzle | |
Chassis | Cab | SINOTRUK HW 76,Single sleep bed |
Allowable passengers in cab | 2 | |
Air conditioner | YES | |
GVW（kg） | 32000 | |
Max loading capacity (L) | 25000 | |
Mass in working order | 11900 | |
Wheel base（mm） | 4600+1350 | |
F/R track base（mm） | 2041/1830 | |
F/R overhang（mm） | 1500/2750 | |
Approach/Departure angle（°） | 15/16 | |
Number of axles | 3, ST16, HF7 | |
F/R axle-load（kg） | 7000/13000/13000 | |
Spring plate | 10/12,4/12 | |
Tire specification&quantity | 12.00R22.5 | |
Braking system | Drum type | |
Electric system | 24V | |
Traction system | 6x4 drive | |
Engine | Engine model | WD615.47 |
Exhaust/output（ml/kw） | 9726/273 | |
Max Horse power @ torque | 371hp at 1310N.m | |
Engine Manufacturer | CNHTC (CHINA NATIONAL HEAVY TRUCK) | |
Emission standard | EURO 2 | |
Type | Inline 6 cylinder, water cooled,4 stroke | |
Transmission | HW15710 ( 10F 2 R) | |
Max speed（Km/h） | 95 | |
Type of fuel | Diesel | |
Production cycle | within 30 Working days | |
