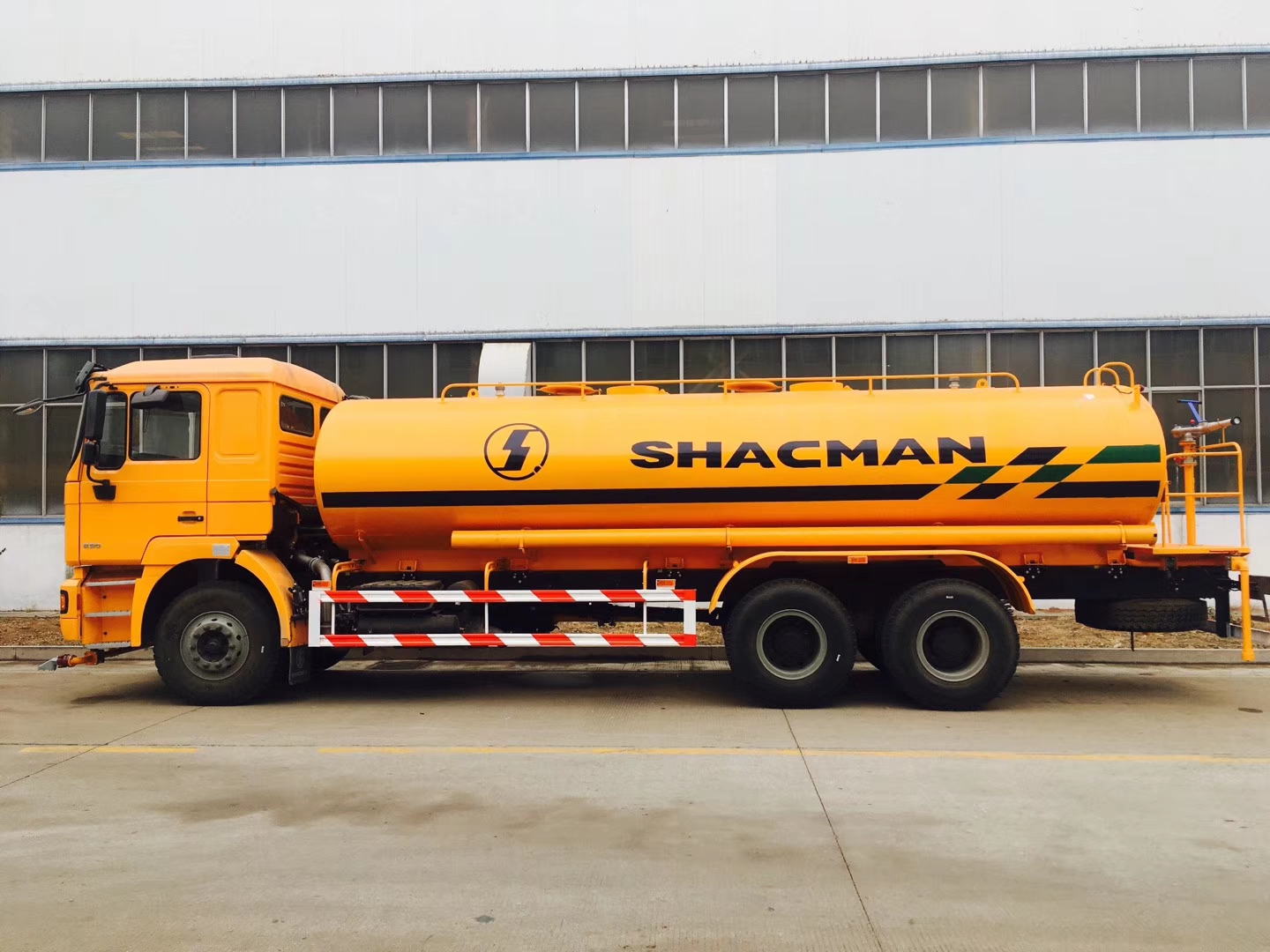

SHACMAN M3000 Fuel truck 25000-29000L
Classification:
Engine power 380/400/430HP Euro II, V , VI
Contact：
Detail
Item | Descriptions & Specifications |
|

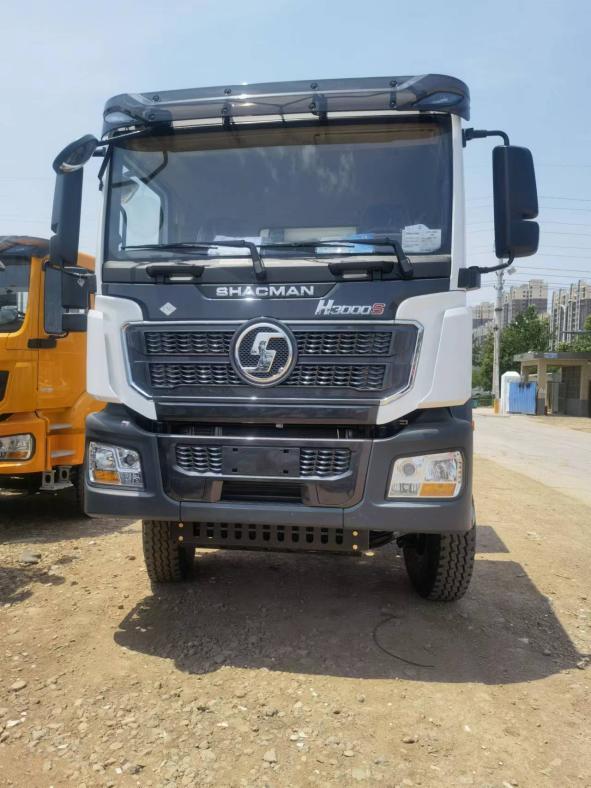

1 | Heavy Duty SHACMAN H3000S 6×4 oil tank truck Chassis model: SX5255GYYMV434 Engine: WEICHAI brand WP12.430N 430hp(316KW), EURO III 6 cylinder, Water-cooled, four-stroke, with Exhaust brake, direct injection, supercharged intercooling, Maximum torque(N.m)/rpm:2060@1000-1400 , Displacement(L) 11.596 Transmission: FAST 10JSD180, 10 forward, 2 reverse QH50 Flange type PTO Clutch: Φ430 diaphragm-spring type Brake System: Drum brake, Dual-circuit compressed air brake, 4 Channel ABS. Parking system : Power spring braking acting on rear wheel Steering: ZF8098 technology, integral circulating ball power steering ,left-hand-drive(LHD) Front axle: 9.5T MAN THCHNICAL Rear axle: 13T MAN THCHNICAL radio 4.769 Wheel base(mm)：4375+1400mm Cab: H3000 cab, 1 berth, Hydraulic main seat, four-point hydraulic suspension cab, electric air conditioning, electric shaking window machine, manual flipping. Frame: 850x300(8+5)mm Suspension: Front/Rear muti-spring plate 4 Main plate +4 Riding bolts Rim/Tires: 12.00R20 radial tire Color: white Fuel tank: 600L Aluminum alloy tank Muffler: Exhaust gas emission system install under of cabin. Tank body system. Oil tank volume: 25000L Stainless steel 304 4mm plate made tanker 25,000L+2% space. 2 compartment, 1st section capacity 18M3, 2nd section capacity 7M3, 1 compartment fit 500mm manhole with air breather valve, pneumatic bottom valve, Stainless steel 304 Manual ball valve 3inch,liquid level gauge, bottom loading oil including anti-overflow control system. Pumps: 2 SETS of Stainless steel Self-priming centrifugal single-stage pump flow 60M3/h Mechanical driven by engine of PTO. Emergency shut-off valves with Manual control. Other Equipment: 2 pcs Soft pipeline with joint 3inch*7m spark arrester connect ground. Breathing valve, tool box Protective dcevices Rear Wheel Chocks |
oil pump anti-overflow Manhole 3inch ball valve liquid level gauge |
|
