Electric Touring Car Four Seats Six Seats Eight Suitable for The Street Community
Classification:
Product Description Basic Info.Body Type Closed Power>2000W Voltage48V Transport Package 3900× 1440× 1940(mm) Specification 3900× 1440× 1940(mm) Origin China Production Capacity 1500set
Contact：
Detail
Product Description
Technical parameters LBXL-06F of 6-seat electric patrol car with door
Electric gas system | Electric gas system | 48V350A Imbor Exchange | ||
battery | 8V150AH/ 6 maintenance-free batteries | |||
electrical machinery | 5KW AC | |||
battery charger | Portable intelligent charger | |||
charging time | 8-10 hours (80% discharge rate) | |||
Car body matching | Basic body color | Patrol car color(customized according to customer needs) | ||
seat | The first two rows are two single seats, and the third row is a row of low back seats (high rebound PU foam + armrest). | |||
car body | Steel frame + fiberglass shell | |||
Doors and Windows | Sheet metal electrophoresis doors, rain doors on both sides of the vehicle (a total of 6 doors can be opened), the upper is a sliding toughened glass window, and the lower is a carbon steel plate. | |||
dashboard | Luxury composite integral forming instrument table, LCD instrument (including current, voltage, speed, speed, mileage, power, light signal, etc.) | |||
rearview mirror | One manual rear view mirror on each side | |||
Lights and signals | Headlights, front and rear turn signals, rear taillights, electric horn and reverse buzzer | |||
alarm lamp | Deluxe alarm lights, blaster | |||
carframe | Mini car chassis optimization, high strength steel structural parts | |||
Bottom plate | power transmission system | Stepless speed control system | ||
steering system | Rack and pinion steering + electric steering power | |||
Front axle and suspension | Independent suspension + coil spring + cylinder type hydraulic shock absorption | |||
Rear axle and suspension | Integral rear axle with main reduction and differential, leaf spring non-independent suspension + cylinder hydraulic shock absorption | |||
braking system | Front butterfly back drum double circuit hydraulic brake, parking brake device | |||
tyre | Steel wheels/front and rear 155R12 vacuum tires | |||
technical specification | Rated occupant | Six people | minimum ground clearance | 150mm |
Vehicle dimensions/Length * width * height | 3900×1440×1940(mm) | braking length | ≤6m | |
unloaded wt | 940kg | Charge input voltage | 220v | |
Vehicle load | 500kg | maximum travelling speed | ≤30km/h | |
Front and rear wheel bases | 1140/1140mm | Driving range | 60-70km | |
wheel base | 2850mm | maximum gradability | 10% | |
minimum turning radius | 6m | | | |

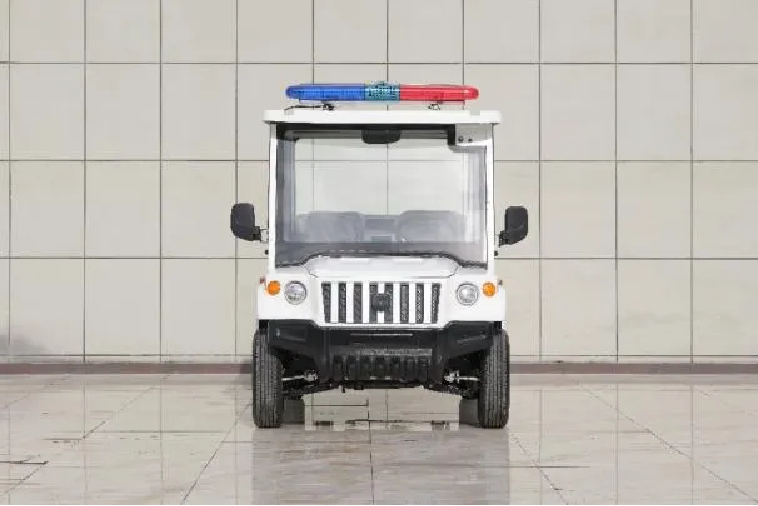

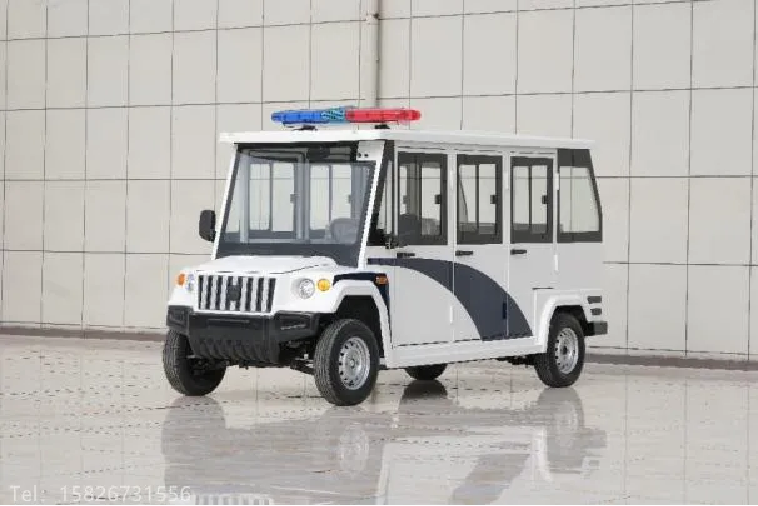

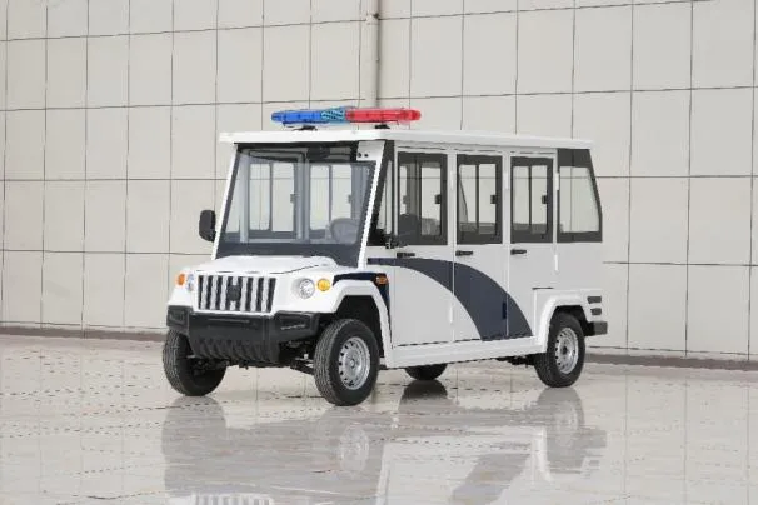

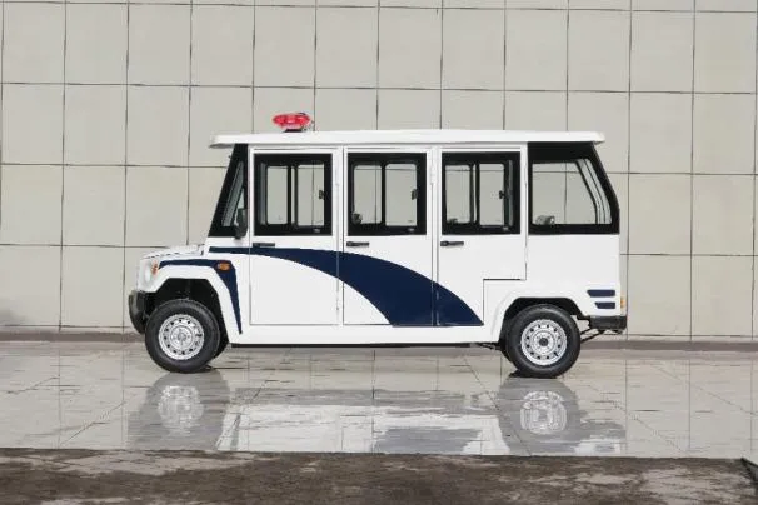

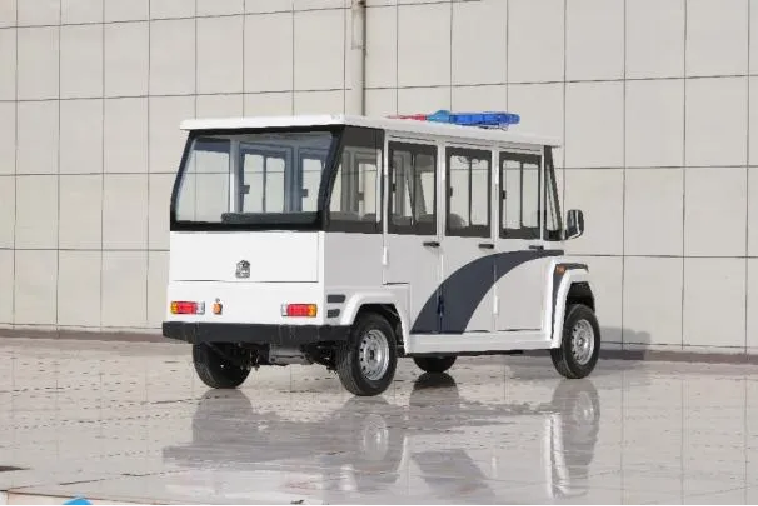

Example picture of 6-seater fiberglass electric patrol car with rain door:
