Electric Four-Wheel Sweeper with Suction Cup 240 Litre Trash Can
Classification:
Product Description Basic Info. Model NO：GLSLB4SDD2500 Body Type：Closed Power：>2000W Voltage：72V Specification：3950*1700*2300mm Origin：China Production Capacity：1500set
Contact：
Detail
Product Description
Electric hanging bucket pure suction sweeper (LB4SDD-2350E)
Electric gas system | electronic control | Circuit assembly system, the line is simple and clear, |
| |
battery | 48V200Ah (8 pieces) brand maintenance-free dry battery (optional) | |||
drive motor | 2.2kW permanent magnet synchronous heavy duty motor | |||
charger | Portable smart charger | |||
Technical parameter number | Rated occupant | 1 person | ||
Length * width * height | 3950*1700*2300mm | traveling speed | 0-12km/h | |
minimum turning radius | Turn 4980mm in place | weight | 1320KG | |
maximum gradeability | 25 degrees | filter area | 20M2 | |
Sweep width | 4980mm | Operating power (main brush, side brush, fan, dust) | 4000W+120W*4+120W*2 | |
working hours | 4-5h | | | |

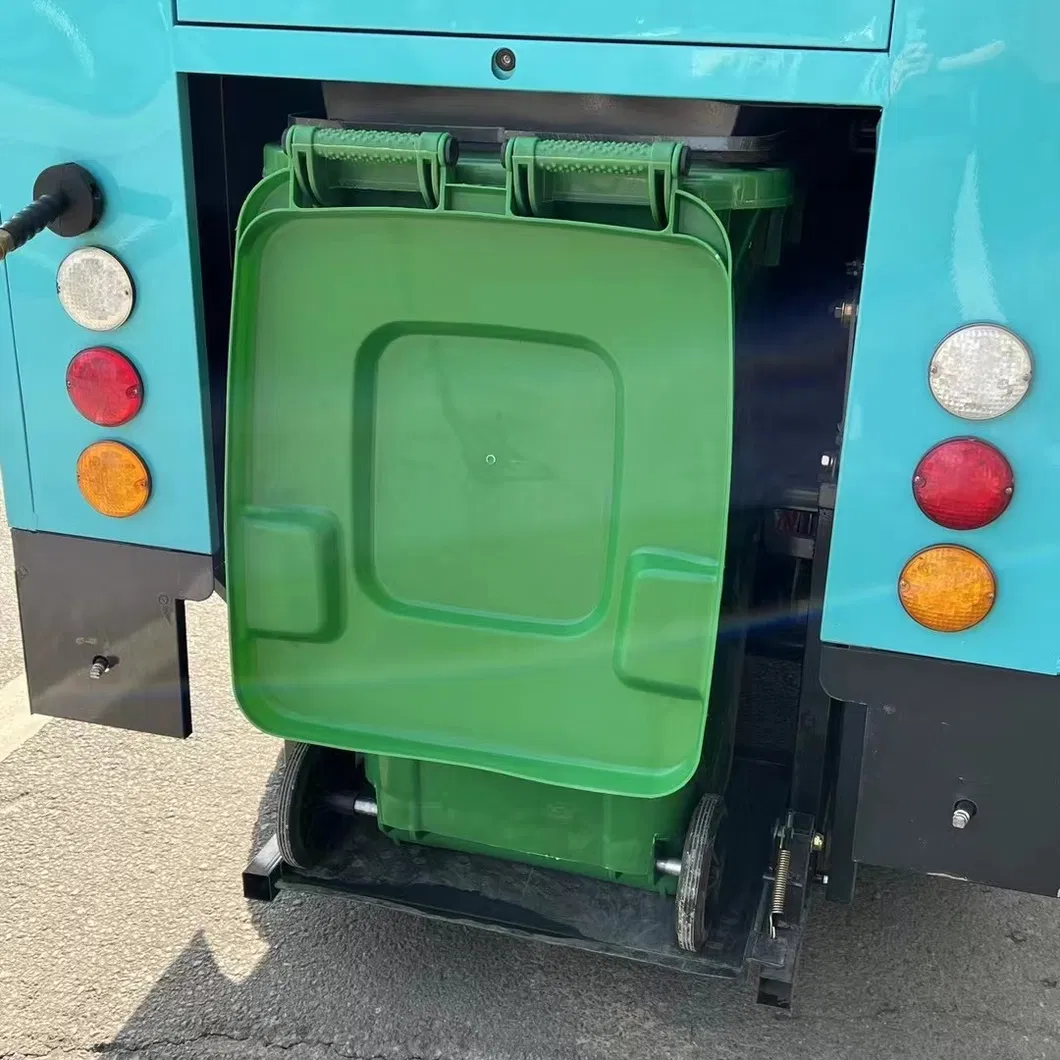

Edge brush diameter | Front 700mm*2 Rear 500mm*2 | Dustbin capacity | 240L trash can | |
work efficiency | 15000-19000M2/h | water tank | 400L | |
High pressure flushing parameter | High pressure forward strafing | 8-10m | Maximum pressure of pump | 12Mpa |
High voltage hedging range | 13-16m | Maximum flow of high pressure pump | 10L/min | |
Water connon range | 10m | Rear sprinkler range | 6m | |
High-pressure rotating fog cannon | 8-10m | High pressure pump power | 1100W | |

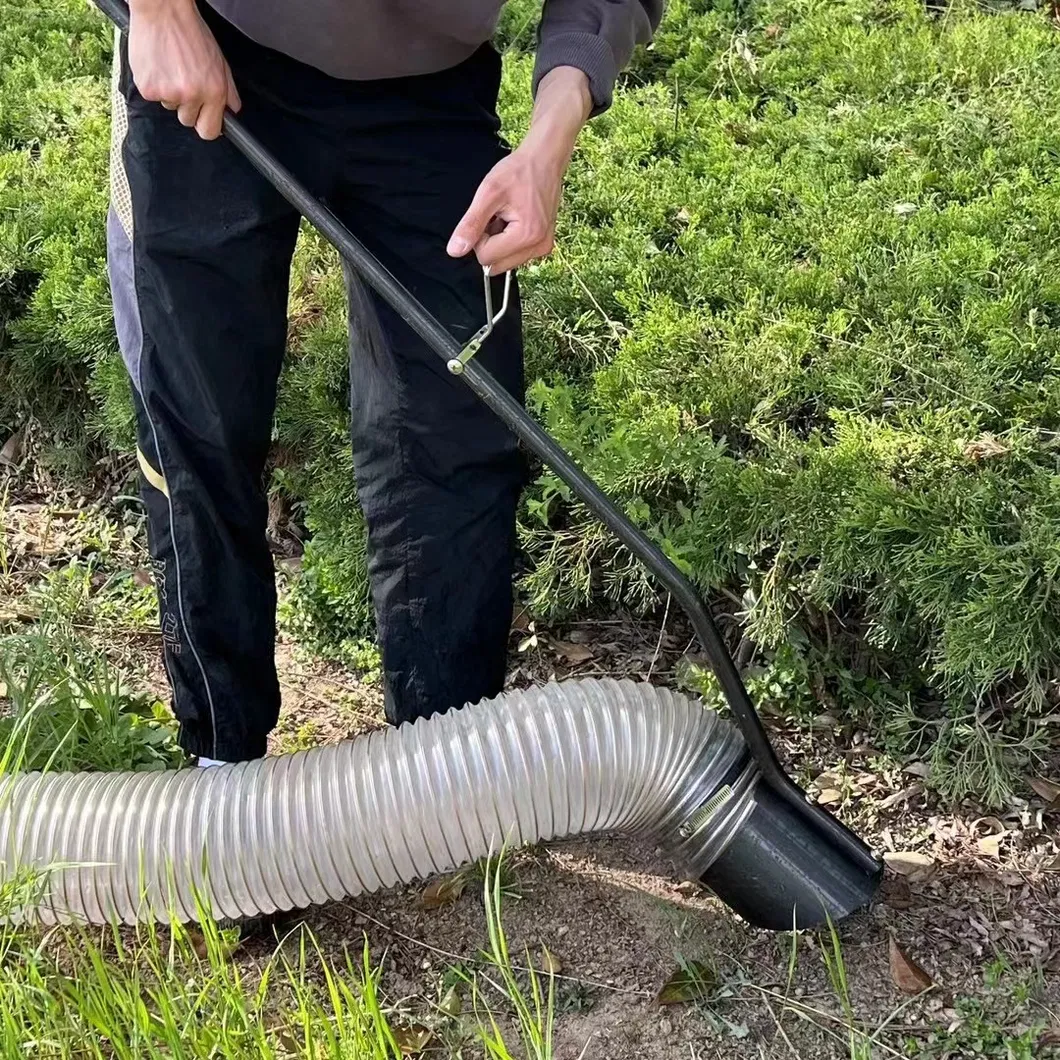

Suction tube length | 6m | Coil length | 15m (optional) | |
Body system | seat | Bus foam + high rebound PU leather fabric | ||
chassis | Carbon dioxide welding technology, stable car body, high safety | |||
car body | Sheet metal shell + rotomized water tank | |||
electrical machinery | Dc high strength permanent magnet motor | |||
drive | Dc no differential drive motor, climbing strong | |||
braking | Oil brake system, strong stability, higher safety | |||
go up and down | electric push rod to lift brush, stable and efficient | |||
tyre | Solid large rubber tires, durable | |||
