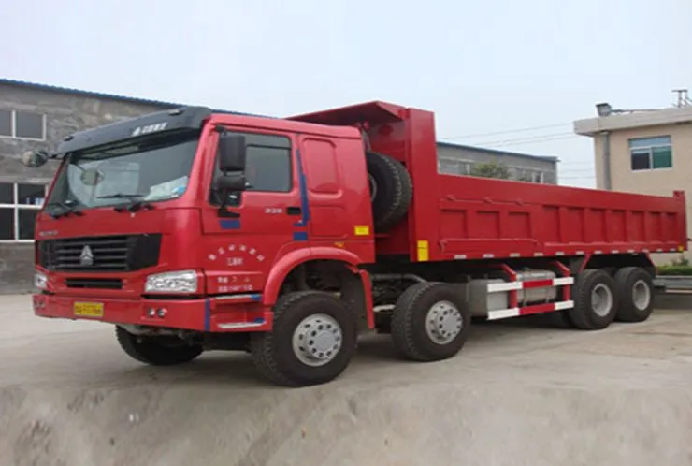

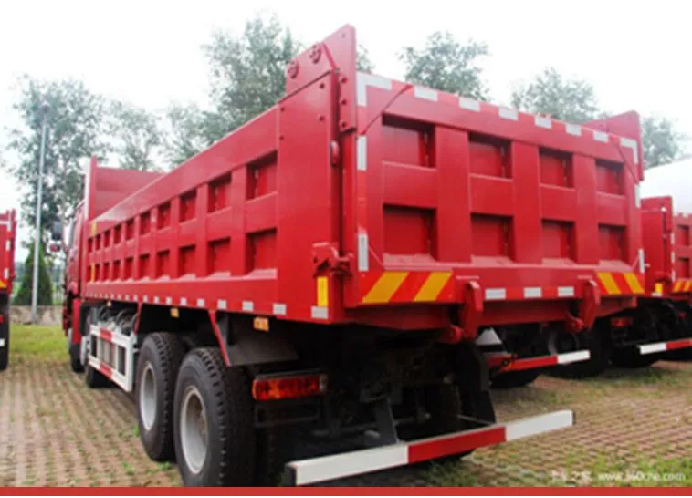

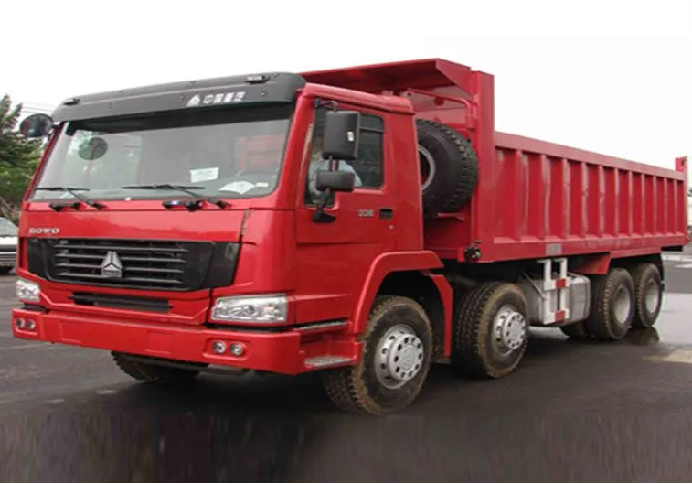

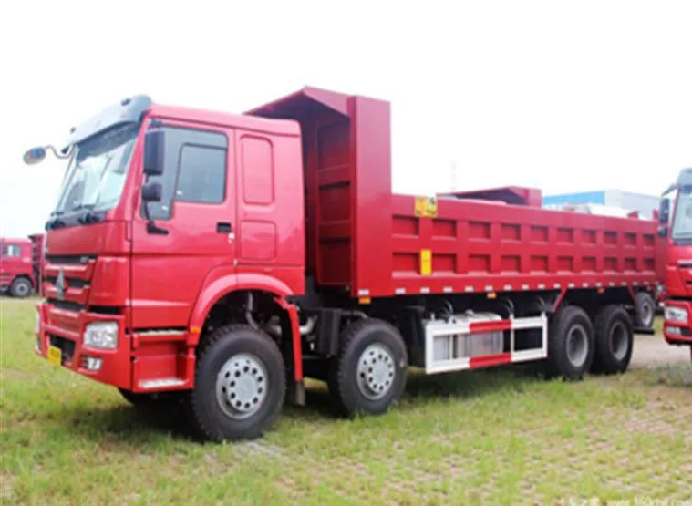

Hot Price Sinotruck HOWO 8X4 Tipper Truck Dump Truck for Sale
Classification:
Product Details Customization: Available Transmission Type: Manual Power: Diesel
Contact：
Detail
Basic Info.
Product Description

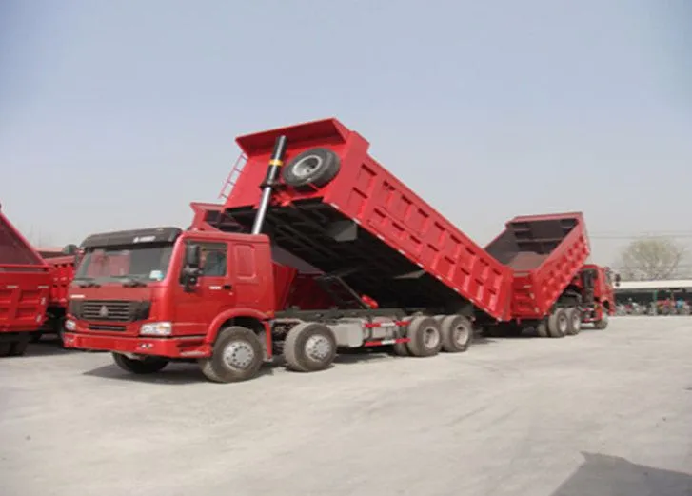

Dump Truck is also call Tipper and dumper is through hydraulic or mechanical lifting and self-unloading cargo vehicles. From the vehicle chassis, hydraulic lifting mechanism, cargo and take power plant and other components.
Dump Truck in civil engineering work and is often combined with excavators, loaders, conveyor and other construction machinery, constitute loading, transportation and unloading production lines, earthwork, gravel, bulk material handling and transportation work, it's one of important construction machineryvehicle.
Category According to use :
Agricultural dump truck, dump truck, garbage dump truck, Mine dump truck, Construction machinery dump truck, Sludge dump truck and so on
SPECIFICATION
Dimension(Lx W xH)(unloaded)(mm) | 9745×2496×3450 | |||
Cargo body size (LxWxH) (mm) | 6800x2300x1500 Sand body,Front lifting, Bottom 8 mm, Side 6 mm | |||
Approaching angle/Departure angle(°) | 19/24 | |||
Overhang(front/rear) (mm) | 1500/1625 | |||
Wheel base (mm) | 1800+3200+1350 | |||
Max speed(km/h) | 75 | |||
Curb weight(kg) | 15400 | |||
Engine(Steyr technology, made in China) | Model | WD615.47,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and inter-cooling, directly injection | ||
Fuel type | Diesel | |||
Power, max(kw/rpm) | 371HP | |||
Emission | EUROII | |||
Fuel tanker capacity(L) | 300L aluminum oil tank | |||
Transmission | Model | HW19710, 10 speeds forward and 2 reverse | ||
Brake system | Service brake | Dual circuit compressed air brake | ||
Parking brake | spring energy, compressed air operating on rear wheels | |||
Steering system | Model | ZF8118 | ||
Front axle | HF9 | |||
Rear axle | HC16 | |||
Tire | 12.00R20 | |||
Electrical system | Battery | 2X12V/165Ah | ||
| Alternator | 28V-1500kw | ||
| | Starter | 7.5Kw/24V | |
Cab | HOWO 76 New face cab(one bed,with air conditioner), all-steel forward control,55ºhydraulically tiltable to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver's seat and rigid adjustable co-driver's seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers. | |||
Main products:
1. Oil Tank Truck
2. Refueling Truck
3. Water Tank Truck/ Water Sprinkler Truck
4. Sewage Suction Truck
5. Sanitation Truck
6. Fuel Tank Semi Trailer
7. Oilfield Truck
8. Chemical Liquid Tank Truck
9. Cement Powder Tank truck/ Bulk cement truck
10. Flatbed Trailer
11. Container Semi Trailer
12. Self-loading Garbage Truck, Garbage Compactor Truck, Sealed Garbage Truck
China Tank Truck Manufacturer.
MOQ: 1 unit
Payment Terms: T/T, L/C
Packing: nude cargo
Delivery Time: within 30 days after receipt of the 30% deposit.
