Surplus Light LHD HOWO Dump Truck 7-8m3 116HP Diesel Engine Sell with Discount
Classification:
Customization: Available After-sales Service: 2 Years Warranty: 1years
Contact：
Detail
Basic Info.
Packaging & Delivery
Product Description

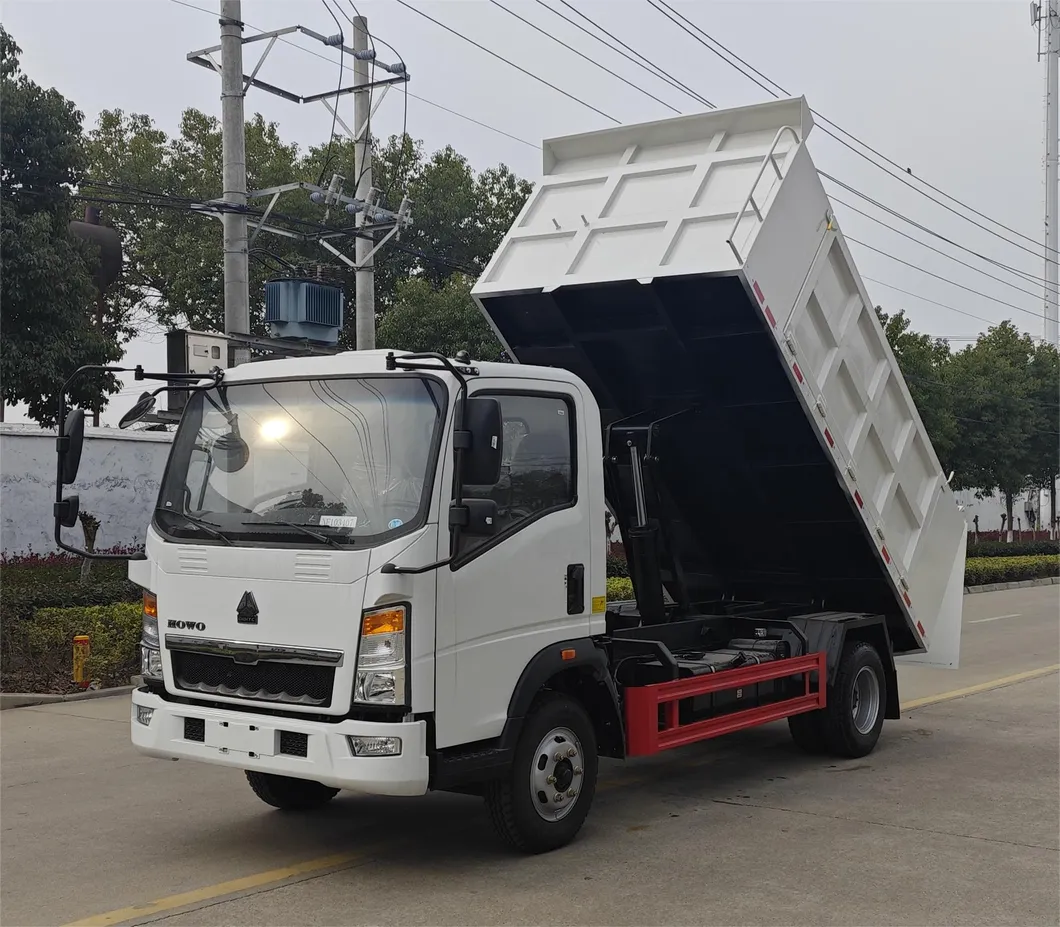

Surplus light LHD HOWO dump truck 7-8M3 116HP Diesel engine sell with discount
Dump Truck is also call Tipper and dumper is through hydraulic or mechanical lifting and self-unloading cargo vehicles. From the vehicle chassis, hydraulic lifting mechanism, cargo and take power plant and other components.
Dump Truck in civil engineering work and is often combined with excavators, loaders, conveyor and other construction machinery, constitute loading, transportation and unloading production lines, earthwork, gravel, bulk material handling and transportation work, it's one of important construction machineryvehicle.
Category According to use :
Agricultural dump truck, dump truck, garbage dump truck, Mine dump truck, Construction machinery dump truck, Sludge dump truck and so on
SPECIFICATION
| Vehicle parameters | |||
| Vehicle Model | ZZ5070GSSE | Vehicle Brand | SINOTRUK |
| Overall dimensions | 5850X2000X2230mm | Curb weight | 3850kg |
| Chassis parameters | ||||
| Chassis model | ZZ1047D3815C1R45 | Chassis brand | SINOTRUK | |
| Overall dimensions | 5560X2220X2330mm | Wheel base | 3360mm | |
| Front/rear wheel track | 1580/1530mm | Front/rear suspension | 1080/1180mm | |
| Approach/departure angle | 21/22° | Maximum speed | 90km/h | |
| Chassis Manufacturer | China National Heavy Duty Truck Group Co.,Ltd | |||

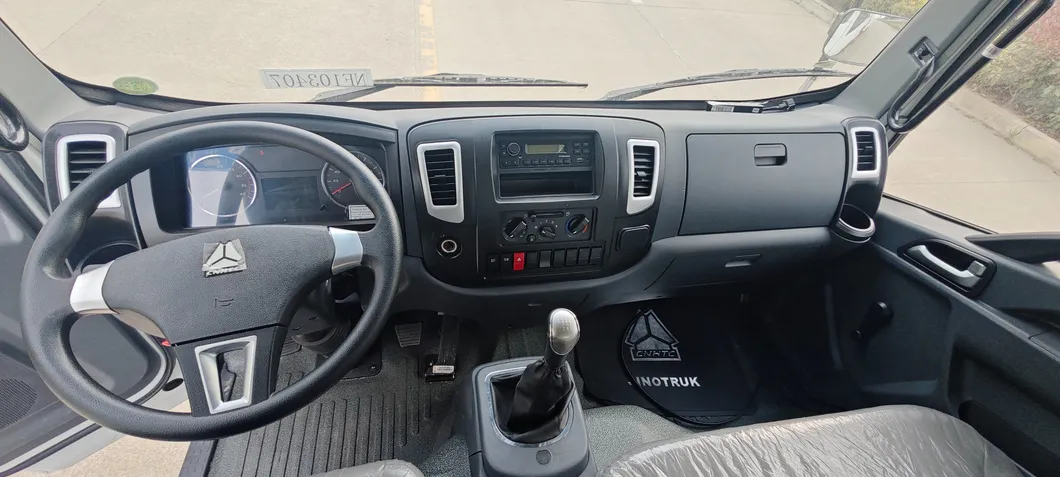

| Cab | Configuration | Cab width: 1880mm , Single cab, power-assisted steering,Air brake system | ||
| Color | White, other color is optional | |||
| Engine | Model | YN4102QBZL | ||
| Emission | Euro 2 | |||
| Type | 4 cylinders, in-line, Diesel engine | |||
| Rated power | 88kW /116hp, rated power speed 2800 rpm | |||
| Displacement | 3856ml | |||
| Max.torque | 392N.m | |||
| Bore x stroke | 102X118mm | |||
| Manufacturer | Kunming Yunnei Power Co.,Ltd | |||
| Tire | Size | 7.00R16 steel wire tire | ||
| Number | 6+1 nos | |||
| Fuel tank | 70L iron oil tank | |||
| Front axle | 2.4 tons | |||
| Rear axle | 4.2 tons | |||
| Drive form | 4X2 | |||
| Suspension | Multi leaf springs | |||
| Rated voltage | 24V, DC | |||
| Transmissions | 6 speed forward 1 reverse.(WLY646) | |||
| Steering device | Power assisted steering | |||
| Steering wheel | Left hand drive | |||
| If there is a slight change in the chassis parameters above, please take the actual product as the standard | ||||
| Dump truck structure parameters | ||||
| Van body dimensions | 3800X2000X1000mm | Side wall | 3mm | |
| Bottom plate | 4mm | Van body material | Common steel | |
| Lifting position | Middle | Dumping direction | Rear | |
| Standard configuration | van body side 3mm bottom 4mm, rectangular van body, single door | |||
Packaging & Shipping

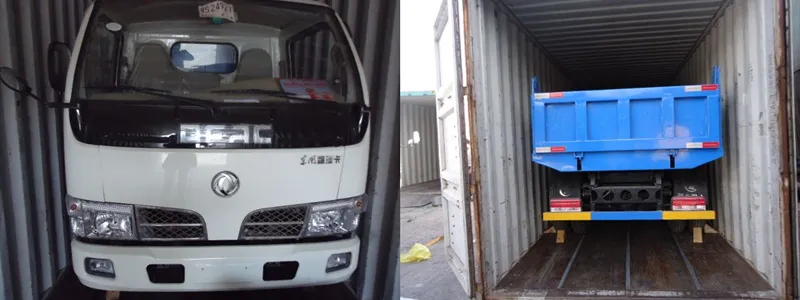

Nude and wax, shipped in bulk ship or ROll-ROll ship,Container ship.
We always use the best packaging solution to decrease transportation cost and give
your the very competitive price.
Main products:
1. Oil Tank Truck
2. Refueling Truck
3. Water Tank Truck/ Water Sprinkler Truck
4. Sewage Suction Truck
5. Sanitation Truck
6. Fuel Tank Semi Trailer
7. Oilfield Truck
8. Chemical Liquid Tank Truck
9. Cement Powder Tank truck/ Bulk cement truck
10. Flatbed Trailer
11. Container Semi Trailer
12. Self-loading Garbage Truck, Garbage Compactor Truck, Sealed Garbage Truck
China Tank Truck Manufacturer.
MOQ: 1 unit
Payment Terms: T/T, L/C
Packing: nude cargo
Delivery Time: immediately
Welcome to visit our factory check it
