Factory Supply Foton Forland 3 Sides P4 Outdoor Display LED Advertising Truck
Classification:
Customization: Available After-sales Service: Online Support Warranty: 12 Months
Contact：
Detail
Basic Info.
Packaging & Delivery
Product Description
LED Billboard Truck(also called LED truck, LED advertisement truck, LED advertising truck, mobile billboard truck)are companion products after the rise of the LED industry. It is a new type of communication medium that combines automobiles and large-scale LED display screens, rich in content, real-time display of graphic information and mobile advertising.
LED Billboard Trucks are generally used for road advertising, product promotion, brand promotion, activities, on-site sales display, sports events, concerts, concerts, political and legal publicity, etc. It can carry out on-site display, communication, and interaction, with a wide range of publicity, and can effectively obtain the largest advertising effect.
1) Pixel and pitch can be choosen P4 P5 P6, etc.
2) You can choose one side, two sides or three sides full color screen

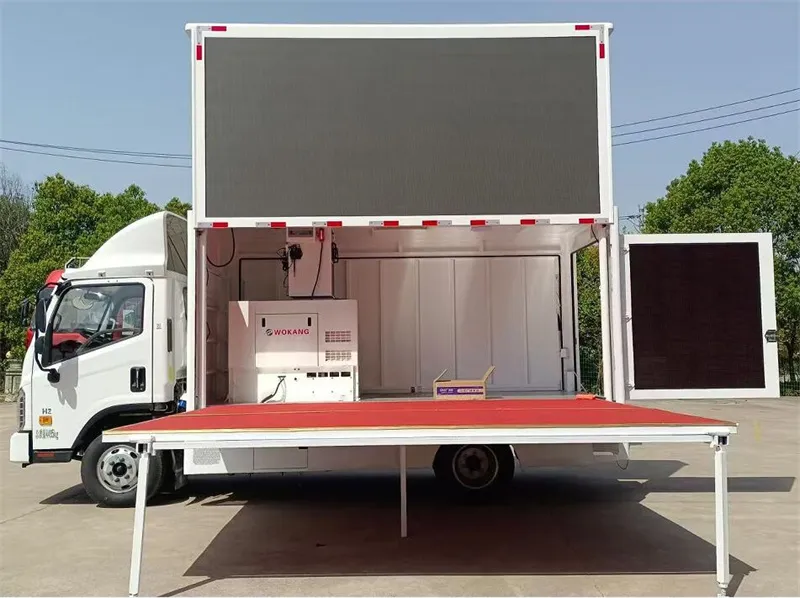

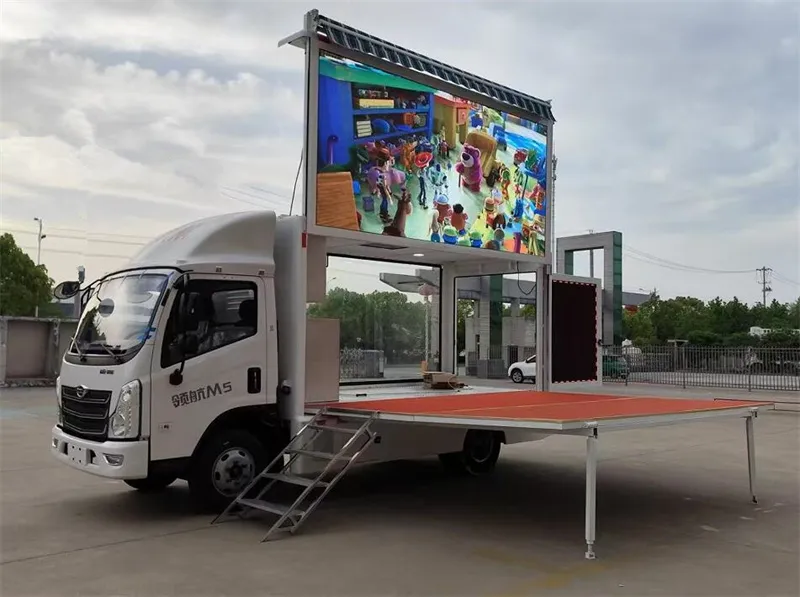

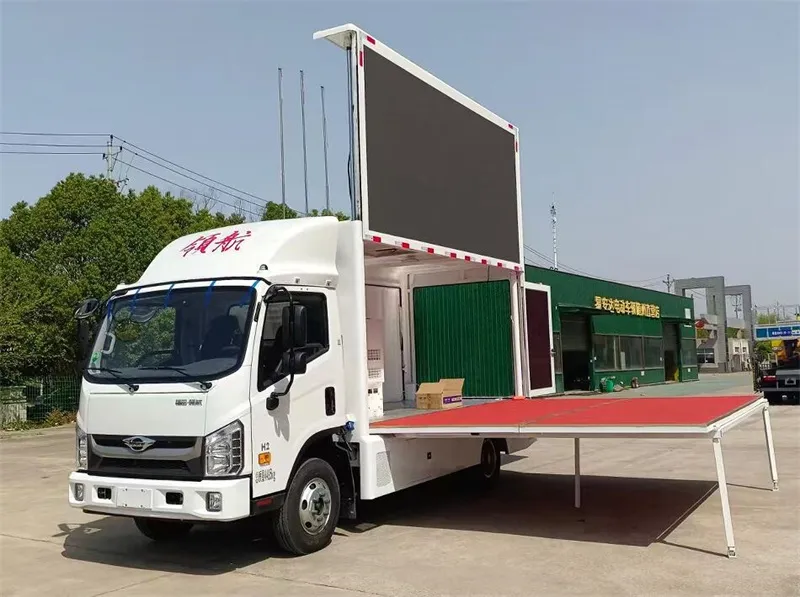

3) The screen can be lifted up to 1.5 meters.
4) Hydraulic legs can be choosed for stability in slope road condition

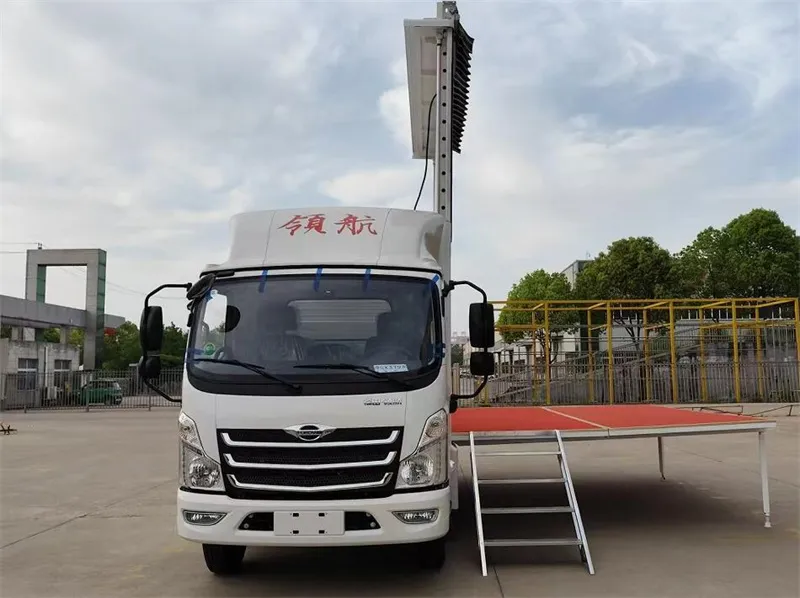

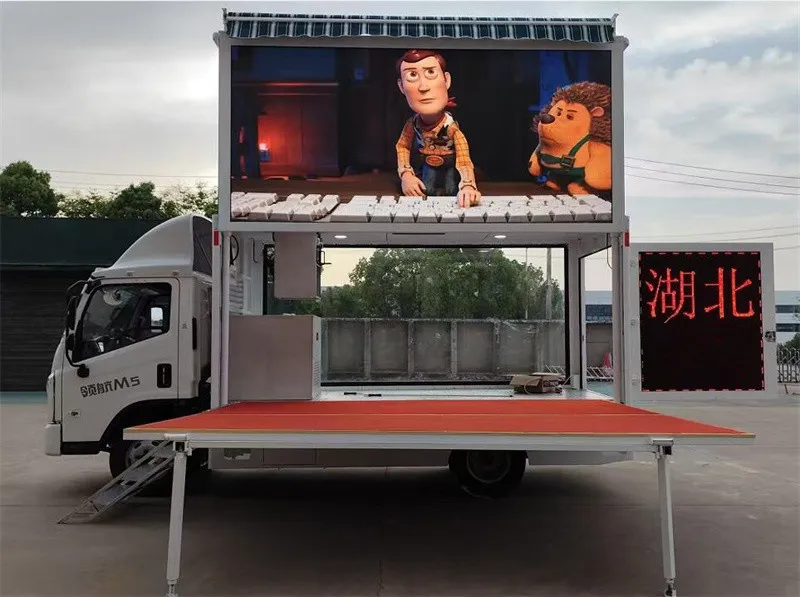

5) Hydraulc stage can be choosed for road show.
Chassis brand
Sinotruk Howo , Beiben trucks , Shacman trucks , FAW trucks ,Hongyan trucks,FOTON trucks , Dongfeng trucks , JAC trucks
| Classification | Item | Unit | Parameter |
| Vehicle | Vehicle model | Forland LED advertising truck CLW5045XXC5 | |
| Manufacturer | ChengLi Special Automobile Co.,Ltd | ||
| Overall dimensions | mm | 5995×2025×2995 | |
| Curb weight | kg | 4300 | |
| Traction system | 4×2 | ||
| Max speed | km/h | 120 | |
| Chassis | Chassis model | BJ1043V9JEA-A | |
| Manufacturer | Beiqi Foton Motor Co., LTD | ||
| Number of axles | 2 | ||
| Wheel base | mm | 3360 | |
| Tire specification | 7.00R16 8PR | ||
| Number of tires | 6 | ||
| F/R track base | mm | 1715/1630 | |
| Engine | Engine model | CY4BK551 | |
| Fuel type | Diesel | ||
| Power | kw | 75 | |
| Engine horse power | hp | 102 | |
| Displacement | ml | 3707 | |
| Emission standard | Euro V | ||
| Driver's cab | Brand | Forland | |
| Model | Flat head, single row | ||
| Allowable seats | 2 | ||
| Steering | Left hand drive | ||
| Transmission | 5-speed with over drive | ||
| Operation control system | Electrically hydraulic control | ||
| Air-conditioning | Yes | ||

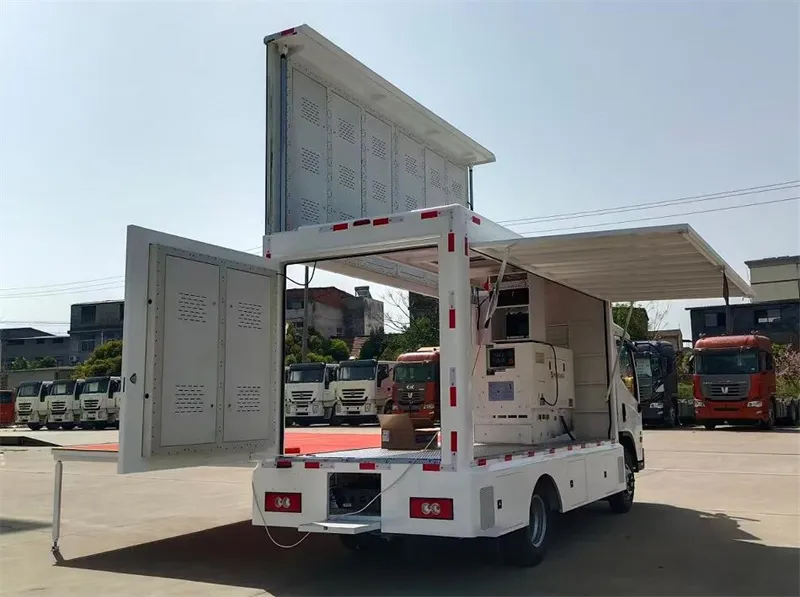

| Standard equipment | 1> 3 sides (left, right and rear) P6 waterproof full color LED screen 2> 5cm composite steel box, aluminum floor; 3> Inside and outside the electric distribution box; 4> Loop ventilation cooling system; 5> 15kw Ouma silent diesel generator; 6>1 industrial computer with control system, waterproof speakers, 1 amplifier, 1 console. 7>Left side screen lifting system, with 9.6sqm stage | ||
| LED screen size | P6 panel (192*192mm); Left and right: 3840*1728mm; Rear: 1536*1536mm | ||
| Color &Painting | According to customer's requirements | ||
Main products:
1. Oil Tank Truck
2. Refueling Truck
3. Water Tank Truck/ Water Sprinkler Truck
4. Sewage Suction Truck
5. Sanitation Truck
6. Fuel Tank Semi Trailer
7. Oilfield Truck
8. Chemical Liquid Tank Truck
9. Cement Powder Tank truck/ Bulk cement truck
10. Flatbed Trailer
11. Container Semi Trailer
12. Self-loading Garbage Truck, Garbage Compactor Truck, Sealed Garbage Truck
MOQ: 1 unit
Payment Terms: T/T, L/C
Packing: nude cargo
Delivery Time: within 30 days after receipt of the 30% deposit.
