HOWO Full Color P4 P5 P6 LED Screen Advertising Vehicle Mobile LED Advertising
Classification:
Contact：
Detail
Basic Info.
Packaging & Delivery
Product Description

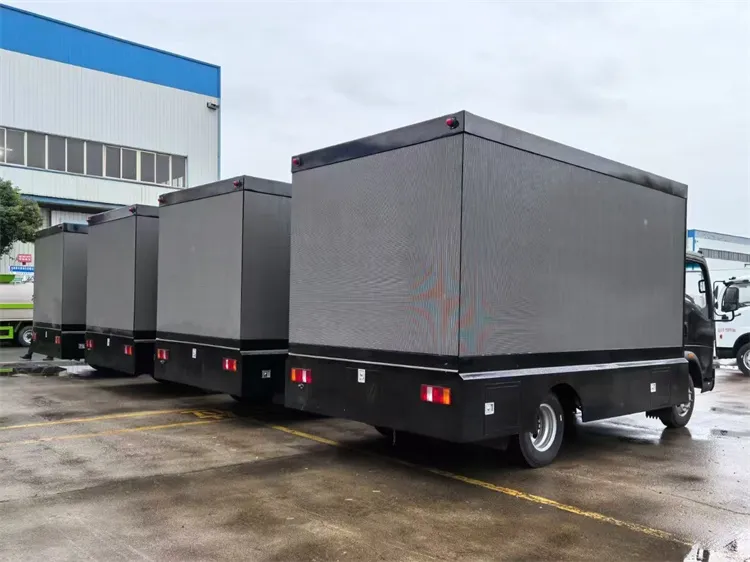

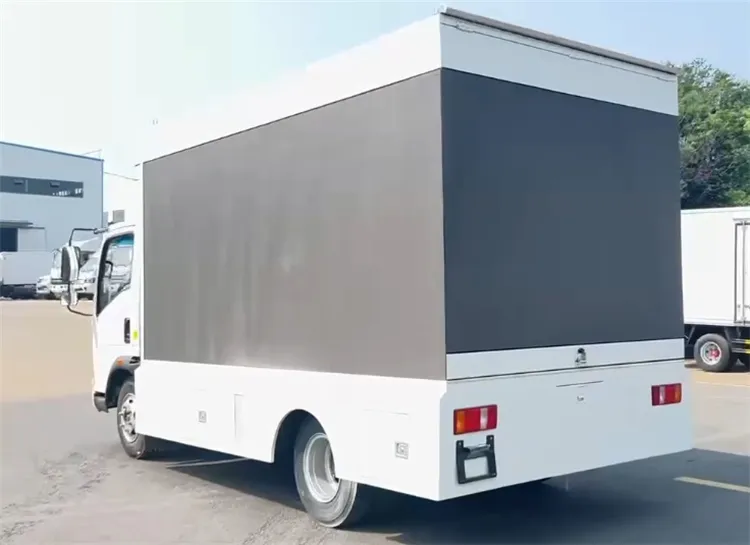

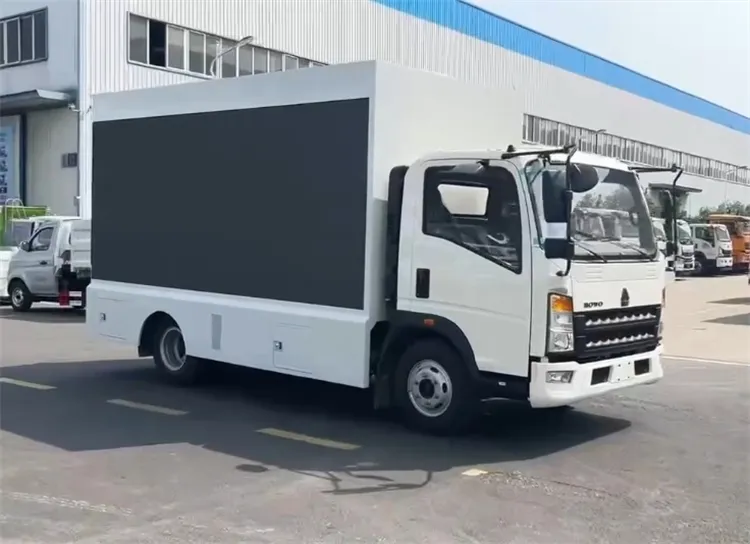

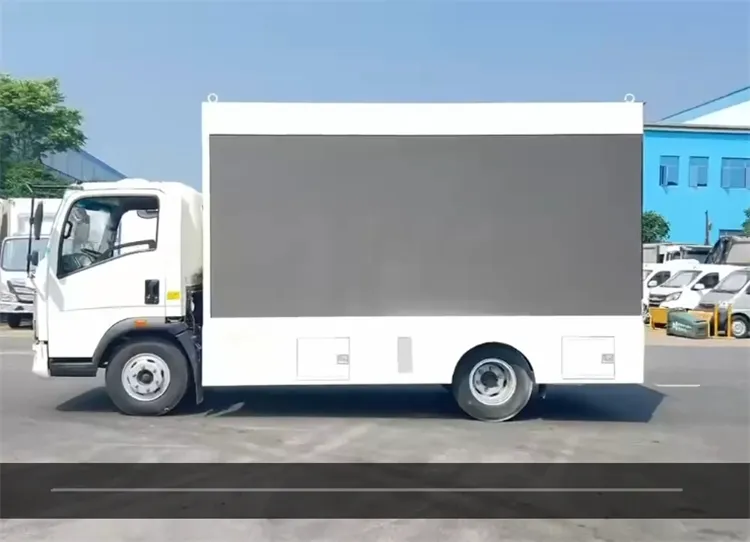

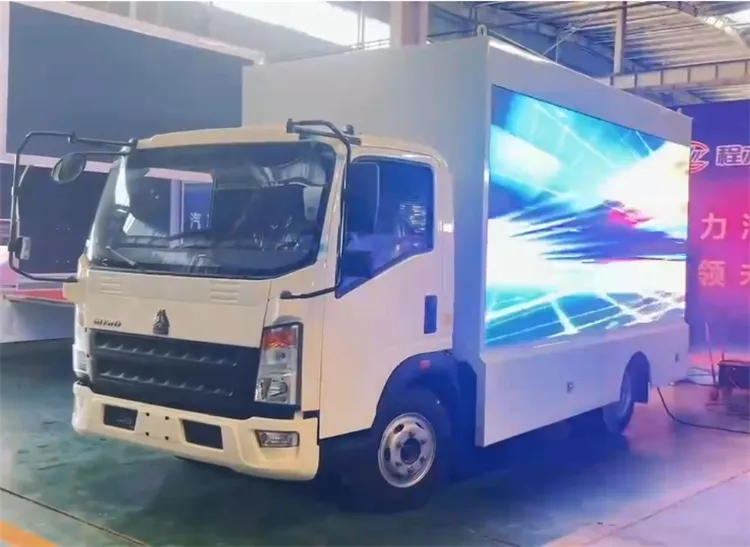

LED Billboard Truck(also called LED truck, LED advertisement truck, LED advertising truck, mobile billboard truck)are companion products after the rise of the LED industry. It is a new type of communication medium that combines automobiles and large-scale LED display screens, rich in content, real-time display of graphic information and mobile advertising.
LED Billboard Trucks are generally used for road advertising, product promotion, brand promotion, activities, on-site sales display, sports events, concerts, concerts, political and legal publicity, etc. It can carry out on-site display, communication, and interaction, with a wide range of publicity, and can effectively obtain the largest advertising effect.
1) Pixel and pitch can be choosen P4 P5 P6, etc.
2) You can choose one side, two sides or three sides full color screen
3) The screen can be lifted up to 1.5 meters.
4) Hydraulic legs can be choosed for stability in slope road condition
5) Hydraulc stage can be choosed for road show.
Chassis brand
Sinotruk Howo , Beiben trucks , Shacman trucks , FAW trucks ,Hongyan trucks,FOTON trucks , Dongfeng trucks , JAC trucks
| Condition | New condition/LHD/RHD/4x2 | ||
| Chassis | Brand | SINOTRUK HOWO | |
| Model | SLS5090GGC5 | ||
| Curb weight(kg) | 4300 kg | ||
| Front/Rear Axle loading(kg) | 2000/3500 kg | ||
| Wheelbase(mm) | 3360 mm | ||
| Dimensions(mm) | 5995*2030*3050 mm | ||
| Front/Rear overhang(mm) | 1160/1475 mm | ||
| Wheel track (front/rear) (mm) | 1605/1520 mm | ||
| Approach/Departure angle(°) | 20/19 ° | ||
| Max. driving speed(km/h) | 90 km/h | ||
| Clutch | Reinforced diaphragm clutch | ||
| Brakes | Service brake: dual circuit compressed air brake. Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels. Auxiliary brake: engine exhaust valve brake | ||
| Steering Gear | Power steering, hydraulic steering with power assistance | ||
| Tire | Quantity | 6pcs with one spare tire | |
| Specifications | 6.50R16 nylon tire | ||
| Transmission | Manual type, 5 Forwards and 1 reverse | ||
| Cab | It can accommodate three people. With Air conditioner. With Air deflector(Air curtain) | ||
| Engine | Model | 4DW93-84NG2 | |
| Fuel type | Diesel | ||
| Displacement(ml) | 2540 ml | ||
| Power(kw) | 64 kw | ||
| Horsepower(HP) | 85 HP | ||
| Cylinder number(pcs) | 4 pcs | ||
| Emission standard | Euro 2 | ||
| LED Advertising Screen System | |||

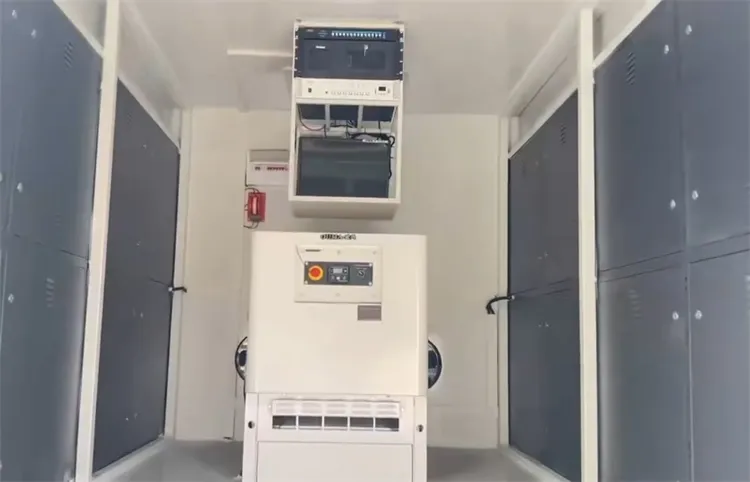

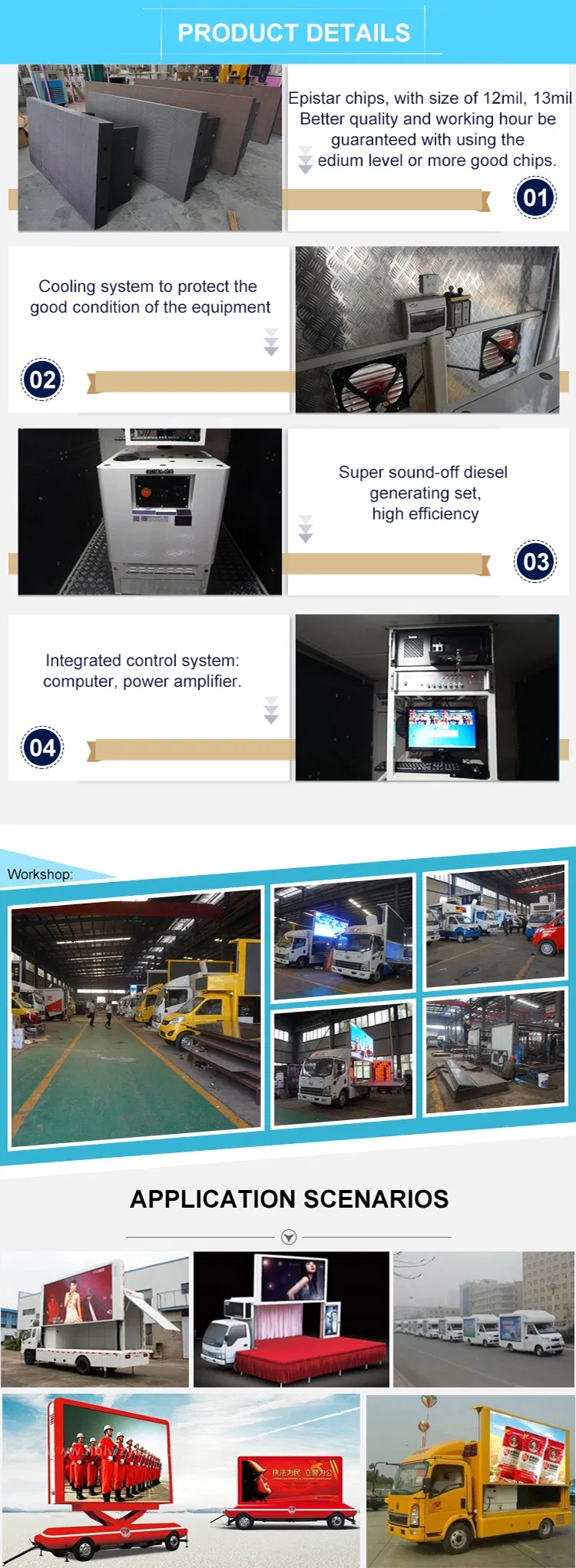

| Upper | 1. One side P6 LED outdoor full color display screen, customized size. 2. One unit mobile stage 3. Silent diesel generator set 4. Control system,sound system 5. Amplifier 1pc, Control Panel 1pc. 6. Waterproof wood floor | ||
Main products:
1. Oil Tank Truck
2. Refueling Truck
3. Water Tank Truck/ Water Sprinkler Truck
4. Sewage Suction Truck
5. Sanitation Truck
6. Fuel Tank Semi Trailer
7. Oilfield Truck
8. Chemical Liquid Tank Truck
9. Cement Powder Tank truck/ Bulk cement truck
10. Flatbed Trailer
11. Container Semi Trailer
12. Self-loading Garbage Truck, Garbage Compactor Truck, Sealed Garbage Truck
MOQ: 1 unit
Payment Terms: T/T, L/C
Packing: nude cargo
Delivery Time: within 30 days after receipt of the 30% deposit.
Excellent Quality & Globalized Lishen
Green Development & Harmony Win-win
Welcome to visit our factory.
