Dongfeng Mobile Full Color Screen LED Advertising Truck
Classification:
Customization: Available Type: LED Advertising Truck Passenger Number: 2
Contact：
Detail
Basic Info.
Packaging & Delivery
Product Description
Dongfeng Mobile Full Color Screen LED Advertising Truck
P4 P6 P8 P10 4X2 Full Color LED Mobile Advertising Trucks for Sale
Features
1) Pixel and pitch can be choosen P4 P6 P8 and P10.
2) You can choose one side, two sides or three sides full color screen
3) The screen can be lifted up to 1.5 meters.
4) Hydraulic legs can be choosed for stability in slope road condition
5) Hydraulc stage can be choosed for road show.
Chassis brand
Sinotruk Howo , Beiben trucks , Shacman trucks , FAW trucks , 1SUZU,Hongyan trucks,FOTON trucks , Dongfeng trucks , JAC trucks

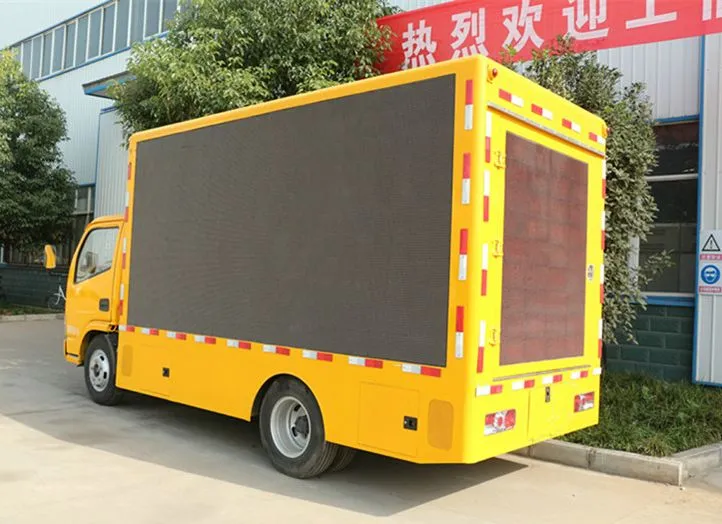

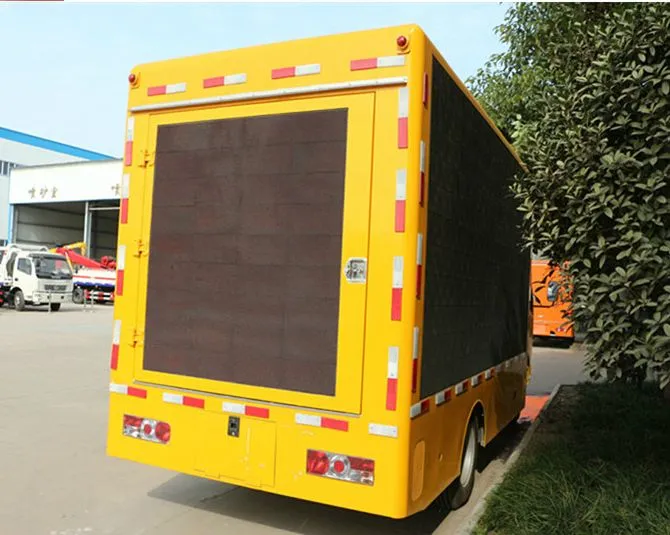

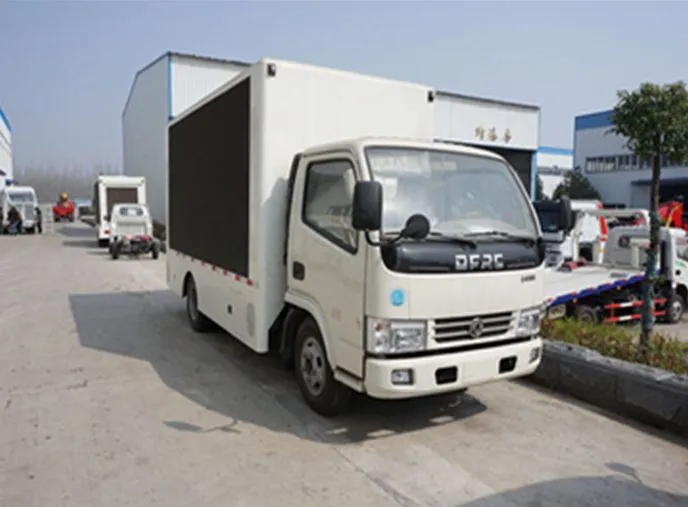

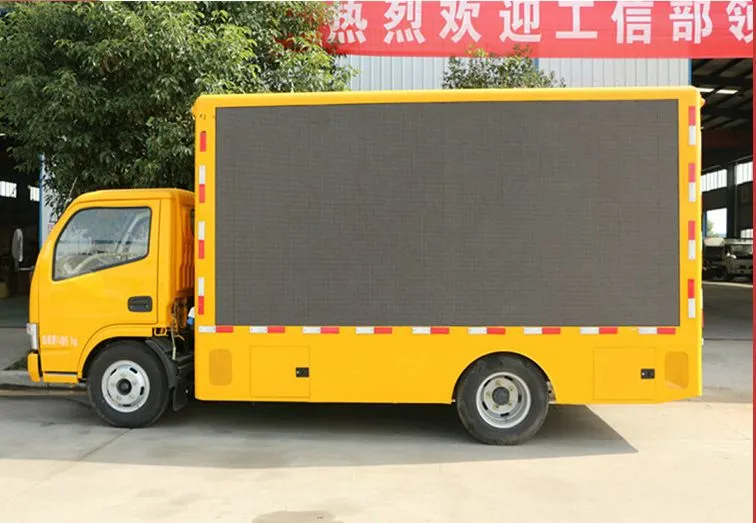

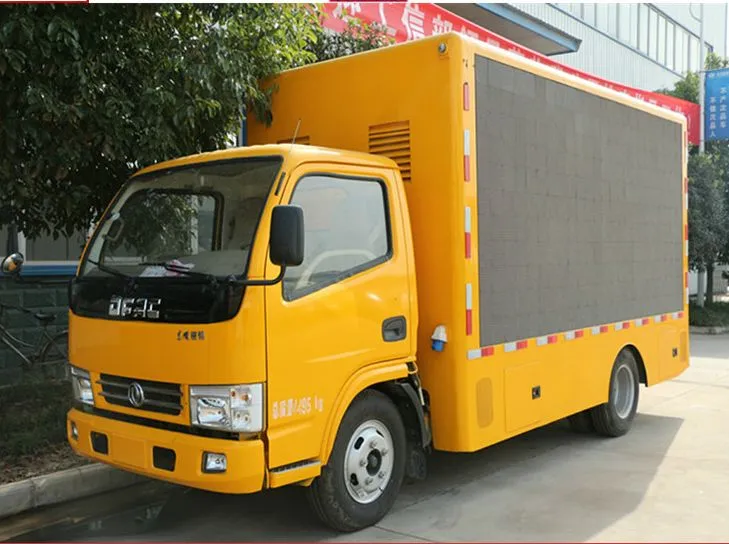

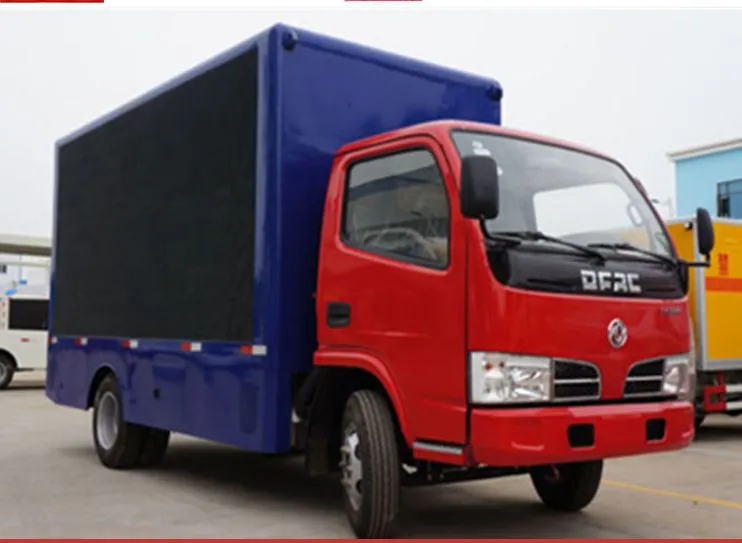

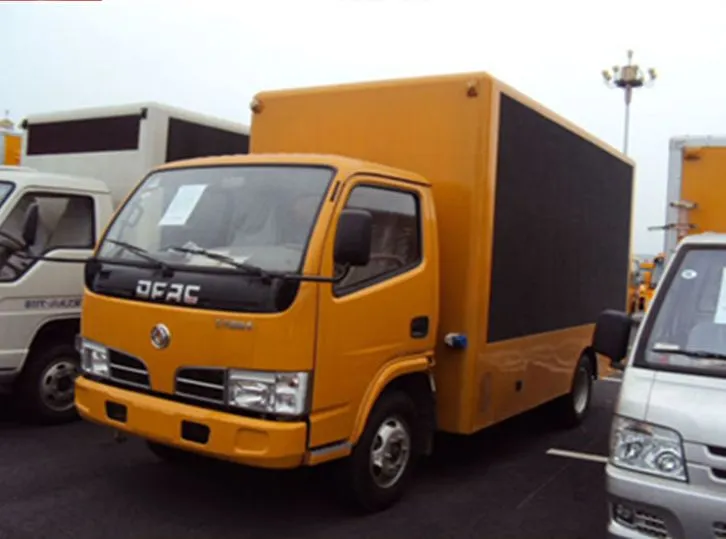

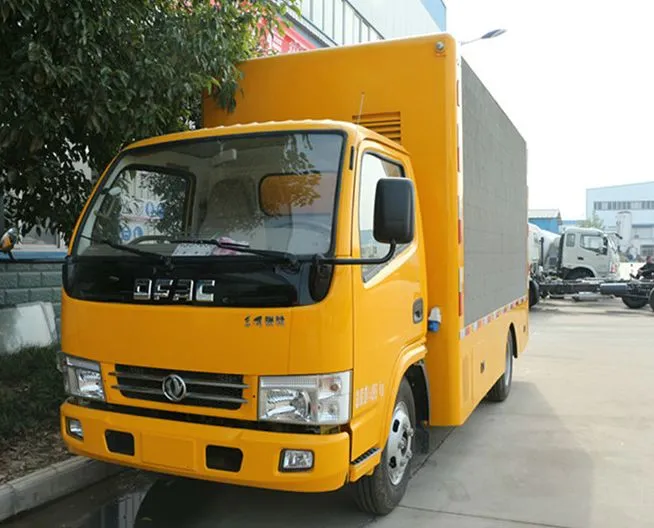

Truck picture:
Technical datails
| Main specification | ||||||||
| Product model,name | SLS5041XLC Led Road Mobile Advertising Trucks and Trailer for Sale | |||||||
| Total weight(Kg) | 4365 | Drive type | 4 x 2 | |||||
| Curb weight(Kg) | 3950 | Overall dimension (mm) | 5995x2000x2850 | |||||
| Wheelbase(mm) | 3300 | Cab seats (man) | 2 | |||||
| Approach / departure angle(°) | 9/24 | Front/rear hang(mm) | 1100/2390 | |||||
| Axle load | 2450/4950 | Max speed(Km/h) | 99 | |||||
| Chassis specification | ||||||||
| Chassis model | EQ1070T35DJ3AC | Manufacturer | Dongfeng Automobile Co., Ltd. | |||||
| Brand name | DFAC | Number of axes | 2 | |||||
| Tire specification | 7.00R16 | Tires No. | 6 | |||||
| Leaf spring | 8/10+7,11/9+7 | Front track(mm) | 1770 | |||||
| Type of fuel | Diesel | Rear track(mm) | 1586 | |||||
| Emission standard | Euro IV | Transmission | 5 Forward Gear | |||||
| Driving cab | Single-row cab with power steering and driver's cab can be flipped forward with air conditioning. | |||||||
| Engine model | Engine Manufacturer | Displacement(ml) | Power(KW) | |||||
| CY4102-C3F | Dongfeng Chaoyang Diesel Power Co Ltd | 2659 | 85 | |||||
| Mobile LED truck specification | ||||||||
| LED side screen size (length x high)(mm) (Left and Right) | 3840X 1792 | Led side screen area | 6.88 * 2 | |||||
| (Left and Right) | ||||||||
| Screen Lift Height(m) | 1.5 (for option) | LED screen's pixel pitch(mm) | 8 | |||||
| Roller color screen size (length x high)(mm) | 1280X1440 | |||||||

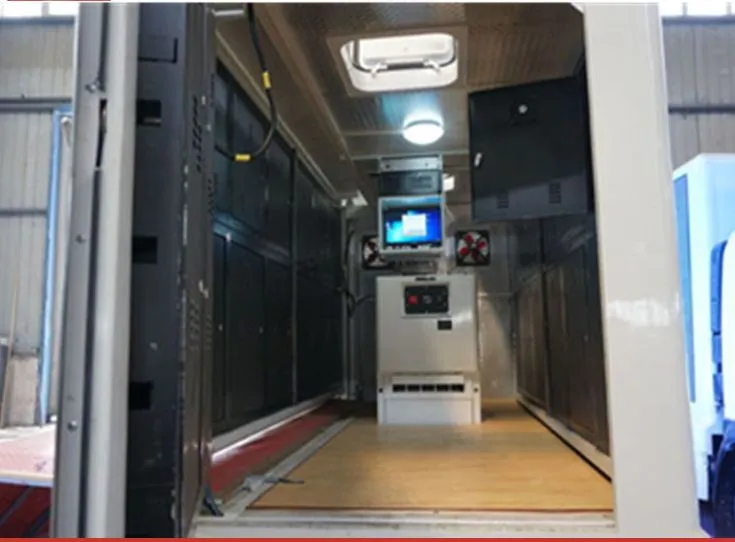

| Remark | There be equipped the Silent generator, wooden floors, lighting, ventilation fans, skylights, computers, stereos, amplifiers and other facilities within the body , and 220V external power connector outside the body. According to customers' requirements, it can be equipped the LED screen lifting system and hydraulic extenstion stage, which will be a multi-purpose truck. | |||||||
| [The Main Features of LED truck] | ||||||||
| 1. This truck is a special vehicle for advertising, generally used for the product promotion, brand promotion, draft activities , live shows sales, sporting events, vocal concerts, concerts and so on! | ||||||||
| 2. Can be showing at any time, communication, interaction, publicity coverage extensively. And meanwhile effectively get the best of advertising effect,, | ||||||||
| 3. According to own requirement. you can select the left and right sides and the back medium(include LED full color, Monochrome LED, Light box advertising) , Led full colour screen can be chose P10, P8, P7, P6. | ||||||||
Main products:
1. Oil Tank Truck
2. Refueling Truck
3. Water Tank Truck/ Water Sprinkler Truck
4. Sewage Suction Truck
5. Sanitation Truck
6. Fuel Tank Semi Trailer
7. Oilfield Truck
8. Chemical Liquid Tank Truck
9. Cement Powder Tank truck/ Bulk cement truck
10. Flatbed Trailer
11. Container Semi Trailer
12. Self-loading Garbage Truck, Garbage Compactor Truck, Sealed Garbage Truck
MOQ: 1 unit
Payment Terms: T/T, L/C
Packing: nude cargo
Delivery Time: within 30 days after receipt of the 30% deposit.
