1veco Monitor Ambulance (Diesel Engine, MT)
1,PRODUCT INTRODUCE
The 1VECO Monitor ambulance is modified with 1VECO model introduced by 1VECO. Using SOFIM diesel engine, equipped with all-directional active + passive safety protection system, the speed can reach 130km/h; Using Bosh 9.0 ABS+EBD technology, it can actively detect and analyze road conditions and adjust driving direction reasonably. Adopt domestic leading boron steel plate, high steel chassis casting, multi beams to increase strength; The overall body center of gravity is low and more stable, effectively ensuring the safety of the driver; The space of the medical cabin is large and the design is reasonable. The whole vehicle adopts the domestic leading medical vehicle modification technology, suitable for all kinds of hospitals and emergency centers, especially suitable for patient transfer and city emergency.
2,Vehicle parameters and standard configuration Technical request
Modified base vehicle (chassis ) : 1VECO diesel Euro 5/6 manual transmission
Appearance color: White /Red
Parameter
| GVW | 3550kg |
| Passager | 7 (Stretcher included ) |
| Wheelbase | 2800 mm |
| Overall size :L×W×D | 4875mm×2040mm×2780mm |
| Medical cab: L×W×D | 2250mm×1740mm×1730mm |
| Approach/departure | 21º/15º |
| Max speed | 130km/h |
| Engine model | SOFIM8140.47Z6 |
| Displacement | 2.499L |
| Emission standard | 6 |
| Rate of power | 90KW |
| Fuel capacity | 70L |
| Drive type | Front engine rear drive |
| Min. Ground clearance | 175mm |
| Transmission | 5F,1R |
| Suspension | McPherson independent suspension/leaf spring non-independent suspension |
| Power type | Rack and pinion,hydraulic power steering |
| Brake type | Front /back disc brake, hydraulic brake |
Vehicle body | Steel reinforced frame structure design, safe and reliable. The right side of the car body is equipped with a sliding door, and the rear end adopts a double-open tail door structure with large opening width, which is convenient for doctors and patients and stretchers Up and down. |
Vehicle appearance | The whole body is white, the front, both sides of the body and the rear door are affixed with the Red Cross logo, and the body color strips are affixed all around, the color is bright and eye-catching, and it is an effective warning. Medical cabin glass is covered with 2/3 frosted cellophane to protect patient privacy effectively |
Warning light | Integrated overhead LED alarm light assembly, alarm horn power 100W, wire control controller, equipped with LED light group. Blue flash lights are installed on both sides and at the tail for effective warning. |
3,Appearance of medical warning
4,Medical cab rescue facilities
Emergency medical service system | Stretcher: Stretcher made of high-strength aluminum alloy, PVC waterproof sponge mattress, adjustable back; The thick oval legs, evenly distributed auxiliary wheels and aluminum blocks greatly increase the load bearing capacity of the derrick, and only one person is required to complete the boarding process. Stretcher platform: made of high quality aluminum alloy material, auxiliary stretcher loading and unloading. Infusion stand: A set of aluminum alloy rail infusion stand with two folding hooks is installed on the top of the medical cabin. |
| Medical oxygen control system | Two 10L steel oxygen cylinders with a nominal pressure of 15MPA (lightweight, easy to install and replace), equipped with two single gauge pressure reducing valves, two German type oxygen terminals, a respirator interface, and a wall type oxygen inhaler. When patients inhale oxygen, the oxygen output can be controlled and equipped with humidification bottles to provide moist oxygen for patients, which is more conducive to oxygen inhalation. |
5,Medical electrical system
| light | 4 * 12V cabin lighting lamps with stable light source and large illumination area, 2 infusion spotlights. |
Inverter | Vehicle mounted sine wave 1000W, with stable frequency, voltage, and output power, providing power supply for on-Vehicle equipment; 2 sets of 220V/12V multifunctional sockets (can be connected to two/three holes, AC/DC dual-purpose). |
| Sterilizing lamp | 1 intelligent timed ultraviolet disinfection, to ensure the health and safety of the cabin. |
6,Air Circulation system
| Air conditioner /Hotwind | 1 set of air conditioning and heating device, independent control of heating and cooling, according to the need to reasonably regulate the cabin temperature. |
| Ventilator fan | Install 1 set of DC12V multifunctional ventilation fan with suction and exhaust on the roof, which can effectively ensure efficient air circulation in the medical cabin. |
7,Cabinet interior configuration of Medical cab
| Cabinet interior configuration | |
| Center partition wall | Between the cab and the medical cabin, a set of new environmental protection materials partition wall, and a glass observation window is set on the middle partition wall to facilitate the front and rear cabin observation and communication. |
| Cabinet assy | Install a set of new environment materials made of long strip equipment cabinet, cabinet body is provided with drawers, space cabinet and other storage space; Install a set of new environment materials made of oxygen cylinder cabinet, cabinet body can accommodate 2 10L oxygen cylinders; Install a set of new environmental protection materials made of hanging cabinet, hanging cabinet adopts sliding door structure, easy to open the door; Install a set of long seat cabinet, including cushion, backrest, two-point safety belt. |
| Medical cab interior | Medical cabin decoration: made of new lightweight materials, waterproof, mildew proof, antibacterial, easy to clean. Medical cabin floor: made of medical floor leather material, non-slip, waterproof, mildew proof, antibacterial, easy to clean. |
Auxiliary equipment
| Side door sliding window | Flat sliding glass window |
| Intercom | One hands-free microphone is installed in the cockpit and one in the medical cabin to facilitate communication and exchange between the front and rear cabin personnel. |
| Firex | 1*1 kg Dry powder firex |
| Sewage bin | 1pc dirt bin with foot-pad open cover |
| Safty handril | Install a long handrail at the top of the medical cab |
| Emergency hammer | 1pc |
8,Optional equipment
| Negative pressure purification device | 1set when the negative pressure device is activated, the relative pressure in the cabin is-30Pa~-10Pa. |
| Traffic assistance system | Includes large screen navigation, dashcam, reverse video. |
| Scoop stretcher | 1 pc |
| DJY-III stretcher | 1 pc,loading capacity:160kg |
9,Draw

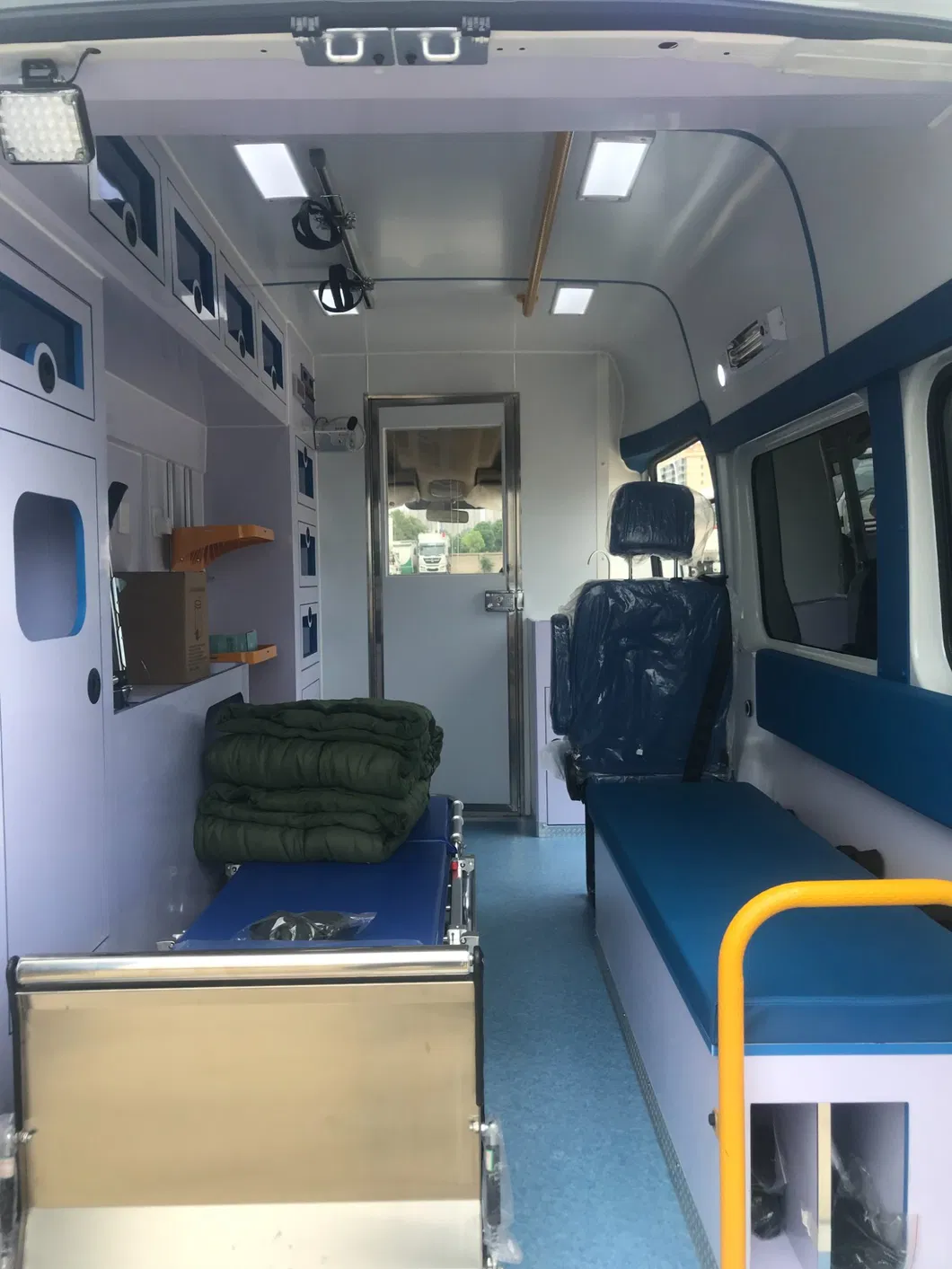

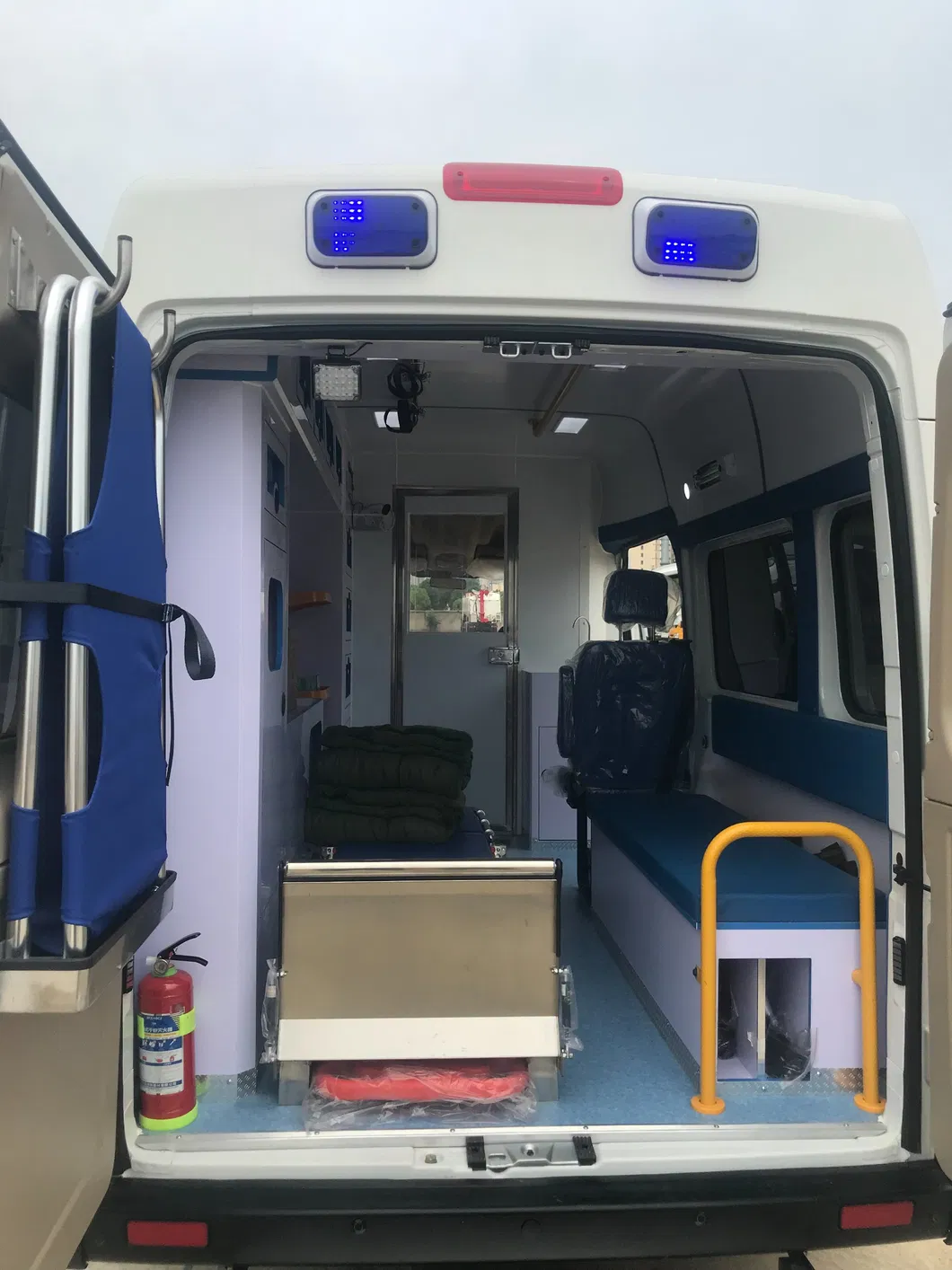

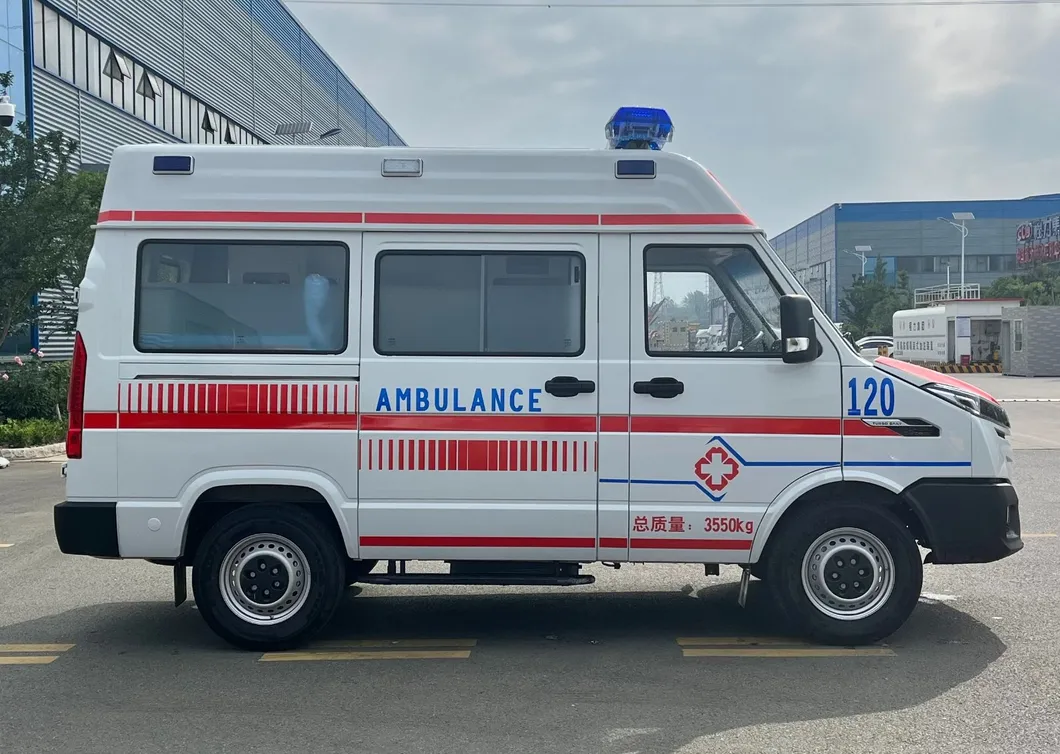

10,Reference photos(This picture is for reference only, subject to customer's order)
