All Drive Ambulance Dongfeng Brand
Classification:
Customization: Available Certification: CCC Transmission Type: Manual
Contact：
Detail
Basic Info.
Packaging & Delivery
Product Description
DONGFENG TRANSFER AMBULANCE ALL DRIVEN TYPE
| GVW (KG) | 4500 | Curb weight | 3200 |
| Rate of loading | 1300 | Overall size | 5990 |
| Passage | 10 | Seat | 2+1 |
| Approach/depart angle | 21/17 | Front/rear suspension | 1030/1295 |
| Axle no. | 2 | wheelbase | 3665 |
| Axle loading | 2100/2000 | Max speed | 100 |
| Engine detail | |||
| Engine model | Engine manufacturer | Emission (ML) | Power(kw/hp) |
| JE493ZLQ4 | JMC ENGINE | 2771 | 85/115 |
| Drive | 4x4 | Steering | LHD |
| Standard transfer type | Remarks | ||
| No. | Item | ||
| Base configuration | |||
| 1 | A/C of medical compartment | 1 | |
| 2 | Cold air of medical compartment | 1 | |
| Electrical circuits and appliances | |||
| Alarms, warning systems | 1 | Long row of standard warning lights | 1 |
| 2 | 100W alarm with hand control | 1 | |
| Top, interior, power supply | 3 | 500W Power Inverter | 1 |
| 4 | Medical cabin warping board control switch | 1 | |
| 5 | 12V power port | 1 | |
| 6 | 220V power port | 2 | |
| 7 | Top LED light | 4 | |
| 8 | Forward and backward fan | 1 | |
| 9 | Long strip sterilizing lamp | 1 | |
| Oxygen pathway and oxygen | |||
| oxygen system | 1 | One 10-liter medical iron bottle and damping clamp | 1 |
| 2 | 1 humidifier bottle with oxygen reducing valve, connect to oxygen bottle directly | 1 | |

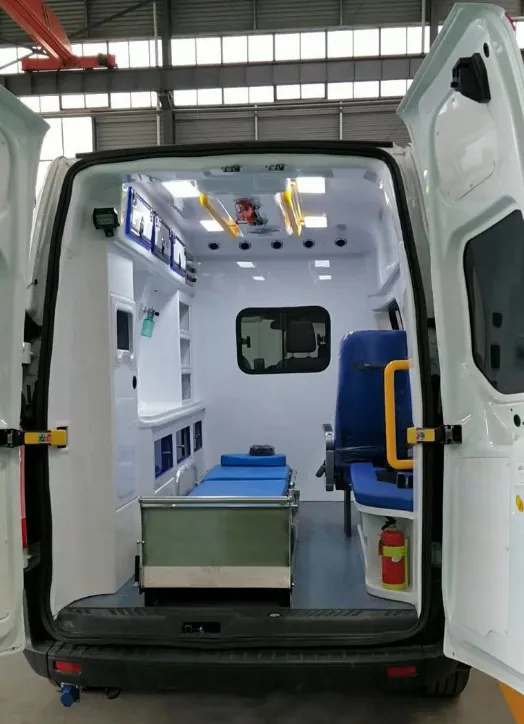

| Making of medical compartment | |||
| Inner medical compartment | 1 | Origin interior | 1 |
| 2 | The partition wall | 1 | |
| 3 | Middle partition push-pull observation window | 1 | |
| 4 | 1 medical cabinet behind the middle partition | 1 | |
| 5 | Oxygen cylinders are fixed beside the medicine bottle cabinet | 1 | |
| 6 | Wear-resistant non-slip blue medical floor leather | 1 | |
| Seat | |||
| Seat system | 1 | Left independent seat | 2 |
| 2 | Left independent seat | 2 | |
| Emergency auxiliary | |||
| Medical system | 1 | Automatic boarding stretcher | 1 |
| 2 | Stretcher plate | 1 | |
| 3 | 1 slide infusion rack | 1 | |
| 4 | 1 slide infusion rack | 1 | |
| Appearance | |||
| Vehicle appearance | 1 | Black solar membrane on left side of medical module | 1 |
| 2 | Right, rear side translucent frosting film | 1 | |
| 3 | Left and right door stick cross sign | 1 | |
